A standard disposable AAA alkaline battery is rated at 1.5 V, while a rechargeable nickel-metal hydride (NiMH) AAA cell is normally rated at 1.2 V. The physical AAA size does not guarantee one voltage: specialty lithium-ion cells in a similar form factor can be about 3.6–3.7 V and must not be substituted unless the device explicitly supports them.
Last updated:
What is the standard voltage of a AAA battery?

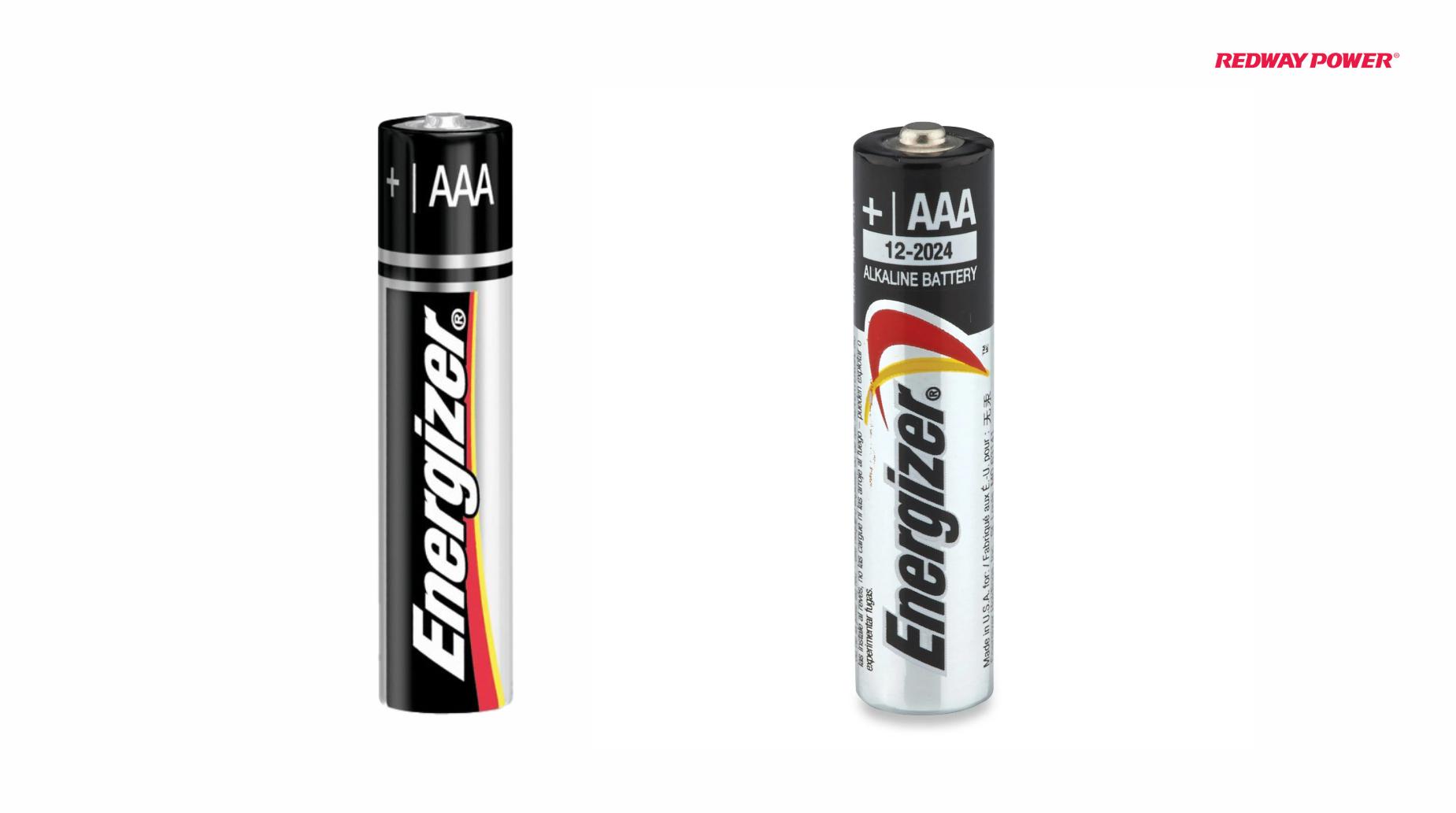

Energizer’s E92 alkaline AAA datasheet specifies a nominal voltage of 1.5 V for the ANSI-24A/IEC-LR03 cell. “Nominal” is the labeled reference value, not a promise that a meter will show exactly 1.500 V throughout the cell’s life.
Wholesale lithium golf cart batteries with 10-year life? Check here.
| AAA chemistry | Typical nominal voltage | Interchangeability note |
|---|---|---|
| Alkaline (LR03/24A) | 1.5 V | Common disposable AAA |
| Primary lithium (for example, L92) | 1.5 V | Disposable; different performance profile |
| NiMH rechargeable (HR03) | 1.2 V | Works only where the device tolerates the lower nominal voltage |
| Carbon-zinc (R03) | 1.5 V | Usually intended for lower-drain use |
| AAA-size lithium-ion | About 3.6–3.7 V | Not a drop-in replacement for a 1.5 V AAA |
What should a AAA battery read on a multimeter?
An unloaded reading depends on chemistry, temperature, recent use and state of charge. A fresh 1.5 V primary cell can read above its nominal rating, while the voltage falls during discharge. A single universal “dead voltage” is misleading because the device’s cutoff and the load determine whether the remaining energy is usable.
For troubleshooting, measure every cell in the pack under the same conditions and compare them. Replace a mixed or weak set together rather than combining new and partly discharged cells. If the device manufacturer publishes a cutoff or battery-test procedure, use that value instead of a generic internet threshold.
Want OEM lithium forklift batteries at wholesale prices? Check here.
Are AAA batteries 1.2 V or 1.5 V?
Both labels are normal. Disposable alkaline and primary-lithium AAA cells are commonly 1.5 V; NiMH rechargeables are commonly 1.2 V. Some devices accept either because NiMH can sustain useful voltage under load, while voltage-sensitive products may show an early low-battery warning or reduced performance. Check the device manual.
How do multiple AAA cells change voltage?
Cells in series add voltage. Three 1.5 V cells provide 4.5 V nominal; three 1.2 V NiMH cells provide 3.6 V nominal. Four 1.5 V cells provide 6.0 V nominal. Parallel cells keep approximately the same voltage while increasing available capacity and current capability, but users should not rewire a device unless it was designed for that configuration.
| Series pack | 1.5 V cells | 1.2 V cells |
|---|---|---|
| 2 cells | 3.0 V | 2.4 V |
| 3 cells | 4.5 V | 3.6 V |
| 4 cells | 6.0 V | 4.8 V |
Why voltage alone does not predict runtime
Runtime also depends on capacity, discharge current, internal resistance, temperature and the device cutoff. Energizer’s E92 datasheet illustrates that measured capacity changes with discharge rate. For broader energy calculations, see Redway’s watt-hour and amp-hour comparison. Redway’s battery engineering team focuses on larger lithium systems; consumer-device selection should follow the device and cell manufacturers’ specifications.
FAQ
At what voltage is an AAA battery no longer usable?
There is no single universal value. Chemistry, load and the device cutoff determine usability. Follow the device test procedure or compare cells under the same load.
Can a 1.2 V rechargeable AAA replace a 1.5 V alkaline cell?
Only if the device supports NiMH cells or tolerates the lower nominal voltage. Check the manual, especially for voltage-sensitive devices.
Are AA and AAA batteries the same voltage?
Common alkaline AA and AAA cells are both nominally 1.5 V. Their size, capacity and current capability differ.
Can I replace a standard AAA with a 3.7 V AAA-size lithium-ion cell?
No, not unless the device explicitly supports that chemistry and voltage. The higher voltage can damage equipment designed for 1.5 V cells.
