Description

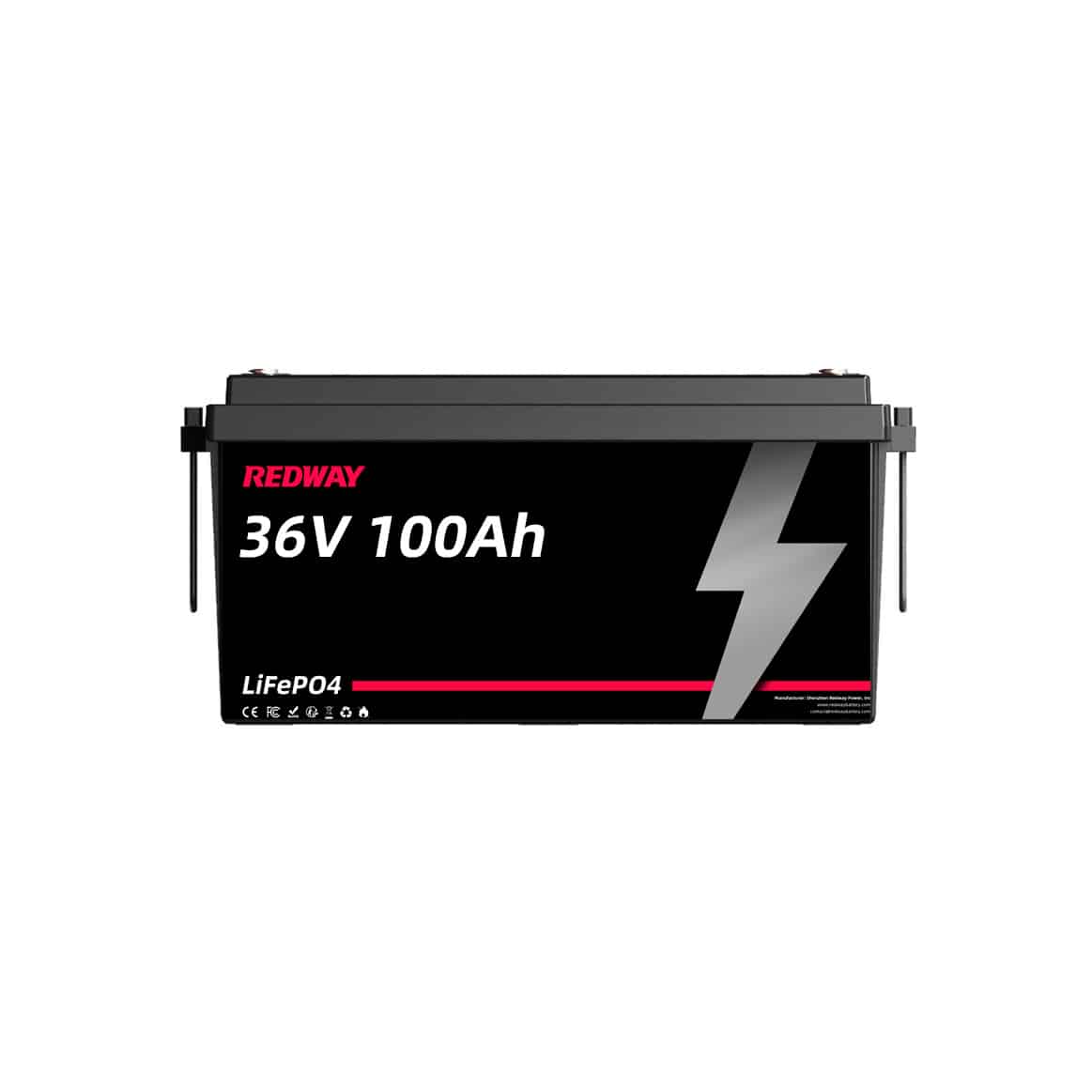

Redway 36V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is the most powerful 36V battery we carry. Extended power and more than 14 hours of use on 36V Marine Trolling Motor.* This is the perfect fit for pro fishermen. Also great for 36V golf carts, solar, warehouse working vehicles and forklifts. One single module 36V100AH weights less and occupies less space than any three 12v100Ah lithium batteries connected in series. It is better to use the right voltage battery for your application than connecting lithium batteries in series. Parallel connection to increase capacity is fine. Buy it now!
36V 100Ah LFP Lithium Battery Specifications:
| Specifications | |
|---|---|
| Lithium Cell | LiFePO4 (LFP) |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 3840Wh |
| Max Charge Voltage | 43.8V |
| Discharge Cut-off Voltage | 30V |
| Max Continues Charge Current | 100A |
| Max Continues Discharge Current | 100A |
| Dimensions [L x W x H] |
520 x 267 x 227 mm 20.5 x 10.5 x 8.9 inches |
| Weight | 31 kg 68 lbs |
| IP Rating | IP65 |
| Max Parallel Connections | 6 |
| Cycle Life | >5000 cycles (80% DOD 0.5C) |
| Self-Discharge | 3% (per month) |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| BMS | JBD / DALY BMS Protection |
| Optional Upgrades | Self-heating / Bluetooth / App / 4G / GPS / WiFi / RS485 / RJ45 / SOC LCD Display / Circuit Breaker / Power Switch / Cooling Fan / Battery Internal Cell Fixation Metal Bracket / Active Balance / Solar MPPT / etc. |
| Normal Charger / Fast Charger | Optional |
| Terminal | M8 |
| Battery Shell | ABS |
| Design Life | 10 Years |
| Warranty | 3 Years |
| Label / Silkscreen / Laser Logo | Yes |
| User Manual | Yes |
| OEM | Yes |
| Shipment | Yes |
| Certifications | UL 1642 / IEC 62619 / CE / UN38.3 / MSDS |
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
