Description

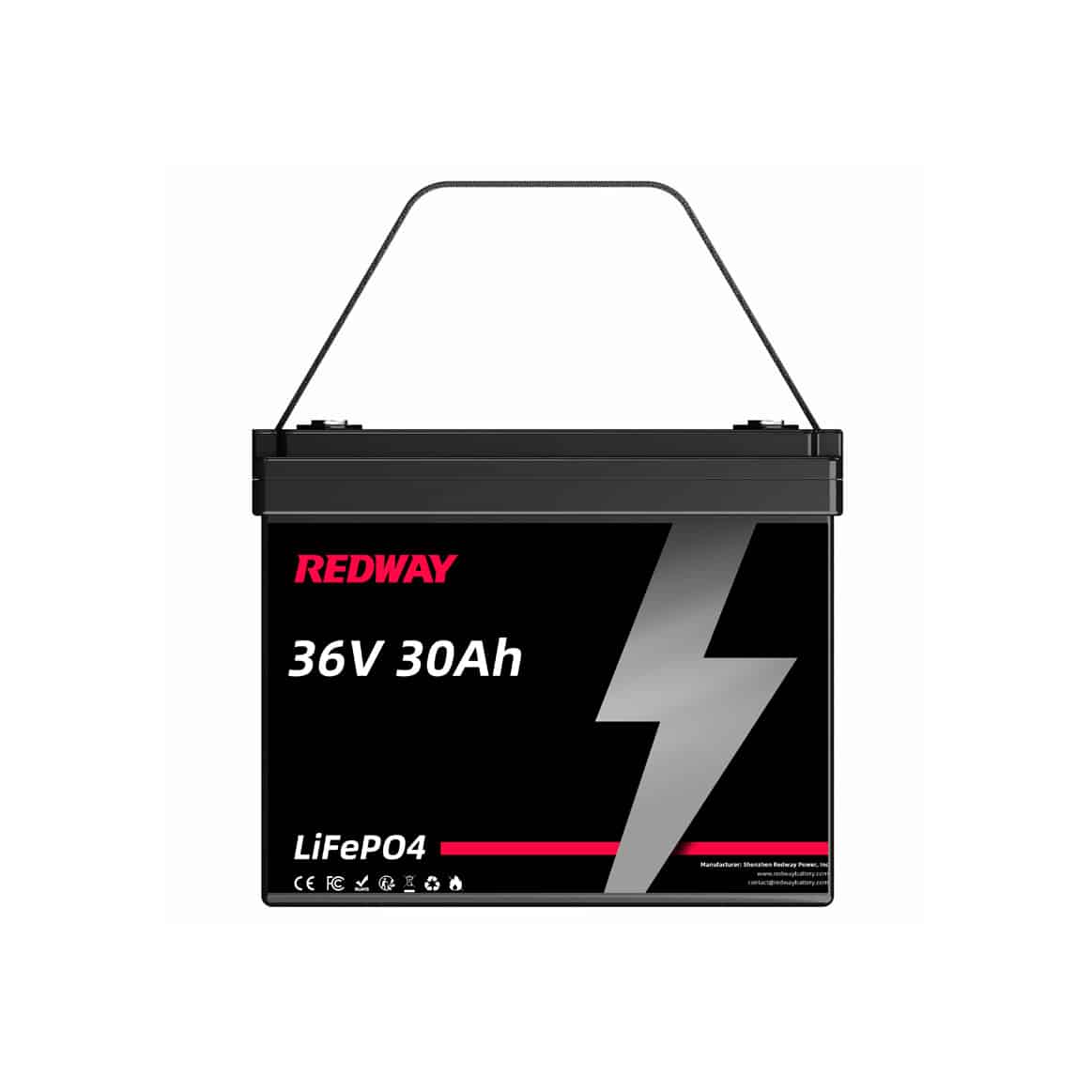

Redway’s 36V 30Ah Lithium Iron Phosphate (LiFePO4) Battery is an advanced power source, optimised for use in applications requiring higher voltages. It is ideal for motors where 12V is insufficient, including electric vehicles like e-bikes and e-scooters, plus various robotic operations. Despite its high capacity, it features a compact form factor to save on space. There’s also an integrated protection circuit module which cell balances internally, in addition to integrated charging circuitry. This ensures that the battery produces no EMI/RFI or other noise during operation. Complementary AC/DC charger delivering 6A at 110/220VAC with DC barrel plug is available – however this must be a LiFePO4 compatible charger and not one designed for SLA batteries.
There are 36V 30Ah lithium batteries made from lithium iron phosphate (LiFePO4), the safest and most robust lithium chemistry. A 36 Volt 30 AH lithium iron phosphate (LiFePO4) deep cycle battery can be recharged thousands of times with 100% DOD (depth of discharge) —2,000+ recharge cycles, and up to 7,000 under ideal charging conditions. (5 times as long as a typical SLA battery).
Furthermore, they have a proprietary high-current BMS that provides superior peak power and lightning-fast 1C continuous charge and discharge rates, plus they offer COLD CHARGE functionality, allowing cold temperature charging to begin at -200C / -40F.
Unlike lead-acid batteries, which can be continuously operated in a Partial State of Charge (PSOC) without compromising performance, a single battery is independently tested to the highest safety, performance, and transportation standards. Providing exceptional lifetime value.
With 30 Amp hours of capacity, it can run high amp draw electronics such as AGVs, AMRs, golf carts, RVs, marine systems, solar systems, etc, for a full day.
36V 30Ah LFP Lithium Battery Specifications:
| Specifications | |
|---|---|
| Lithium Cell | LiFePO4 (LFP) |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 30Ah |
| Nominal Energy | 1152Wh |
| Max Charge Voltage | 43.8V |
| Discharge Cut-off Voltage | 30V |
| Max Continues Charge Current | 100A |
| Max Continues Discharge Current | 100A |
| Dimensions [L x W x H] |
260 x 168 x 210 mm 10.2 x 6.6 x 8.3 inches BCI Group 24 |
| Weight | 9.5 kg 21 lbs |
| IP Rating | IP65 |
| Max Parallel Connections | 6 |
| Cycle Life | >5000 cycles (80% DOD 0.5C) |
| Self-Discharge | 3% (per month) |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| BMS | JBD / DALY BMS Protection |
| Optional Upgrades | Self-heating / Bluetooth / App / 4G / GPS / WiFi / RS485 / RJ45 / SOC LCD Display / Circuit Breaker / Power Switch / Cooling Fan / Battery Internal Cell Fixation Metal Bracket / Active Balance / Solar MPPT / etc. |
| Normal Charger / Fast Charger | Optional |
| Terminal | M8 |
| Battery Shell | ABS |
| Design Life | 10 Years |
| Warranty | 3 Years |
| Label / Silkscreen / Laser Logo | Yes |
| User Manual | Yes |
| OEM | Yes |
| Shipment | Yes |
| Certifications | UL 1642 / IEC 62619 / CE / UN38.3 / MSDS |
