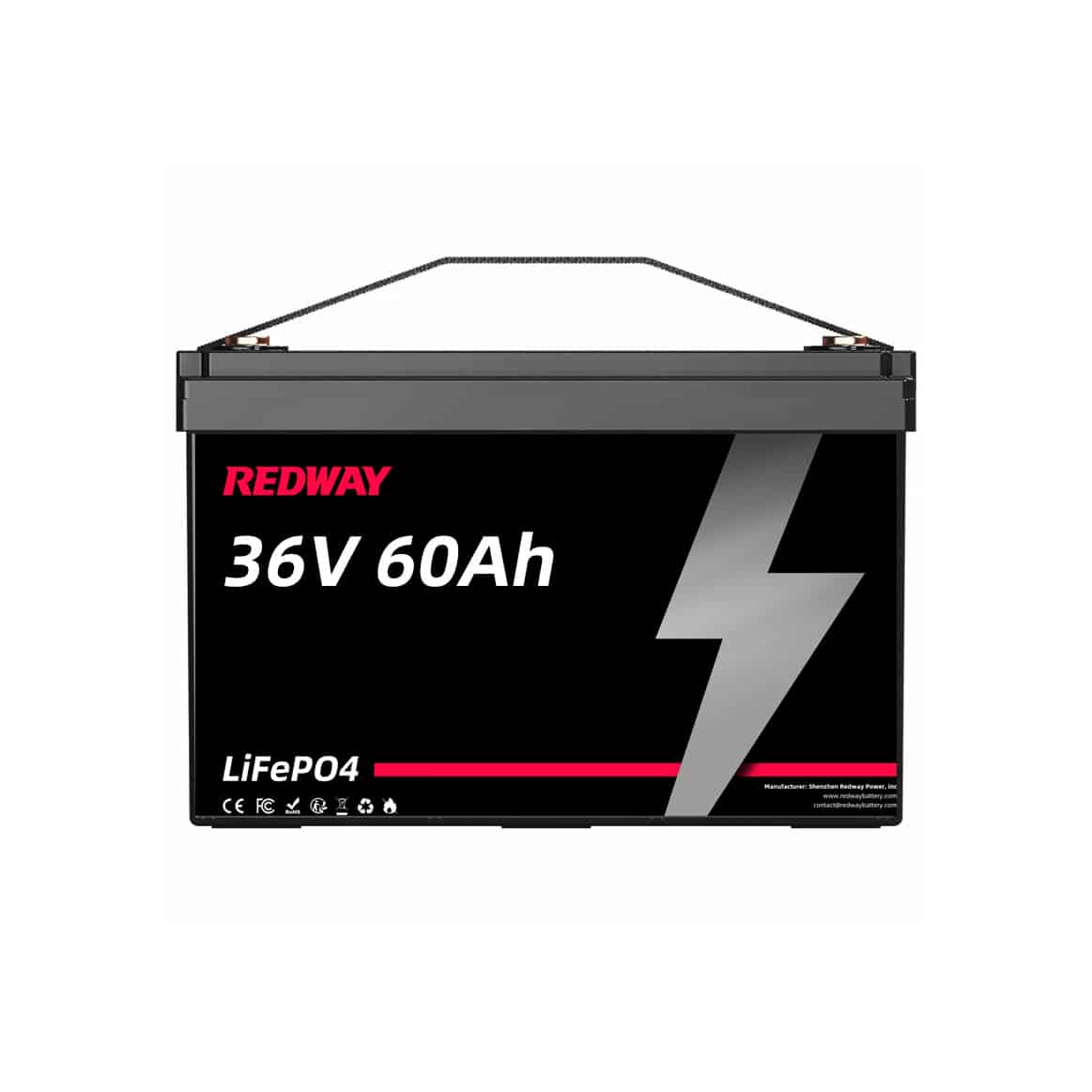

Redway 36V 60Ah Lithium Iron Phosphate (LiFePO4) Battery is the latest in high voltage battery technology. Perfect for powering higher voltage motors, 36V or 72V 2~3 wheels e-scooters, e-rickshaw, and robotics applications – this small and compact battery provides an optimal solution with complete internal cell balancing, integrated protective circuitry and no EMI/RFI or noise.
36V 60AH LiFePO4 battery is perfect for 36V Marine Trolling Motors, 36V Golf Carts, Floor clean maching, e-forklifts, Sightseeing Car, RV, Boat, UPS, Solar ESS, and Robotics 36V system.
This battery has more power than 3 Lead Acid/AGM batteries rated at ~12V +120AH, offering also 10x lifetime than the Lead Acid/AGM batteries.
Put together in Parallel 3 x 36V60Ah and you have a 36V 180Ah system that is more powerful than any 36V 360Ah system in Lead-acid batteries.
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
Technical Data
36V 60Ah LFP
SPCES
Applications
Electric Golf Cart, Floor Scrubber, Floor Cleaning Machine, Electric Scooter, Electric Rickshaw, UPS, Solar ESS System, RVs, Marine Boat, Yacht, Trolling Motors
Battery Cell Type
LiFePO4
Nominal Voltage
38.4V
Nominal Capacity
60Ah
Nominal Energy
2304Wh
Max Charge Voltage
43.2V
Discharge Cut-off Voltage
30V
Max Charge Current
60A (Continuous)
Max Discharge Current
60A (Continuous)
Peak Discharge Current
100A (5s)
Cycle Life
6000 cycles (80% DOD)
Dimensions (L*W*H)
501 x 185 x 242 mm
19.7 x 7.28 x 9.5 inches
Weight
15kg (33 lb)
Terminal
M8
Working Temperature
Charge: 0°C ~60°C / Discharge: -20°C ~65°C
Max Parallel Connection
4
IP Rating
IP65
Optional Functions
Self-heating / Bluetooth / APP / WiFi / 4G / GPS / Active Balance / Power Switch / LCD Screen / RS485 / RS232 / CAN-bus
Last Update
2024-9-20 Alex
