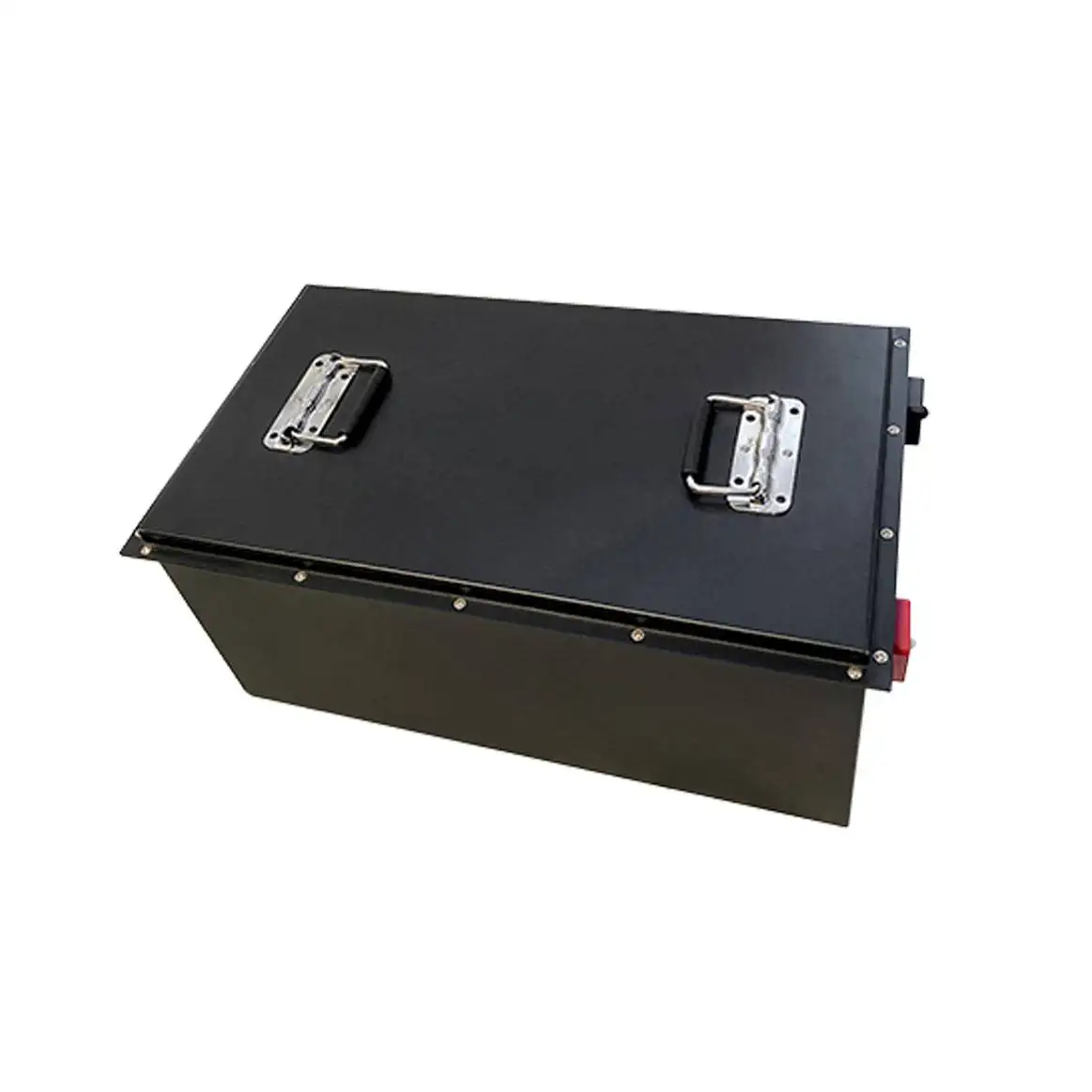

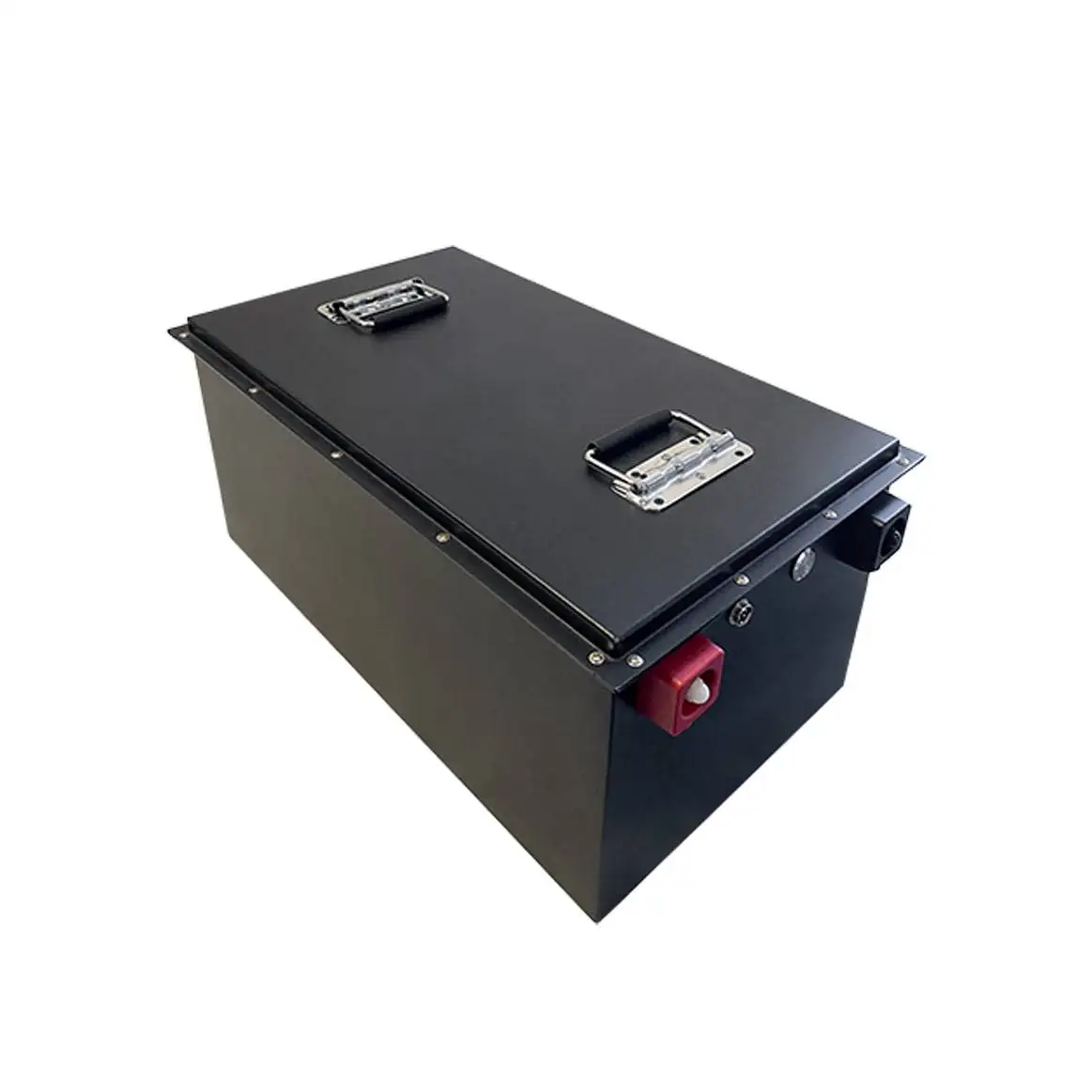

The 48V 100Ah Lithium Battery from Redway Battery is an advanced energy solution designed to meet the demanding needs of various applications, including golf carts and low-speed vehicles (LSVs). Built with high-grade LiFePO4 (Lithium Iron Phosphate) cells, this battery offers exceptional safety, reliability, and performance.
Key Features:
High Capacity & Efficiency: With a nominal capacity of 100Ah and energy output of 4800 Wh, this battery ensures long-lasting power for extended usage.
Long Cycle Life: Engineered for durability, it boasts over 8000 cycles at a depth of discharge (DOD) of 60%, significantly reducing the need for frequent replacements.
Fast Charging Capability: The battery supports fast charging, achieving a full charge in just 2.5 hours, allowing for quick turnaround times.
Robust Operating Range: Designed to operate in extreme conditions, it functions optimally in temperatures ranging from -20°C to 60°C for discharge and 0°C to 60°C for charging.
Customizable Solutions: This battery can be tailored to meet specific requirements, making it an ideal choice for OEM/ODM projects. Customization options include dimensions, connection features, and communication protocols.
Comprehensive Protection: Equipped with an IP65 protection level, the battery is resistant to dust and water, ensuring reliable performance in various environments.
Connectivity Options: Supports Bluetooth, WiFi, RS485, CAN communication, and more, enabling seamless integration with smart systems and monitoring.
Warranty: Comes with a 5-year warranty, reflecting Redway Battery’s commitment to quality and customer satisfaction.
This versatile 48V 100Ah Lithium Battery is an excellent choice for those looking for a powerful, efficient, and long-lasting energy solution. Whether for recreational use in golf carts or professional applications, Redway Battery ensures top-notch performance and reliability.
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
Technical Data
Parameter
Value
Cell Type
LiFePO4 (LFP)
Nominal Capacity
100 Ah
Nominal Voltage
48 V
Nominal Energy
4800 Wh
DOD60%
> 8000 cycles
Maximum Charge Current
100A
Maximum Discharge Current
100 A
Dimension (LWH)
660*330*250 mm (26*13*9.8 inch)
Charge Voltage/ Charge Cut-off Voltage
54.75V
Discharge Cut-off Voltage
37.5V
Terminal
M8
Operating Temperature and Humidity Range
Charge: 0°C -60°C / Discharge: -20°C -65°C
Max. Parallel Connection
Bluetooth / WiFi / Communication (RS485, CAN, etc) / Heating / Active Balance / Switch / LCD Screen / LED Touch Screen / APP
Protection Level
IP65
Warranty
5 Years
Fast Charging
Supports (2.5 Hours)
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
FAQs
What is the nominal capacity of the 48V 100Ah Lithium Battery?
The nominal capacity of this battery is 100Ah.
What type of lithium cells are used in this battery?
This battery uses LiFePO4 (Lithium Iron Phosphate) cells, known for their safety and long cycle life.
How many cycles can I expect from this battery?
The battery can deliver over 8000 cycles at a depth of discharge (DOD) of 60%.
What is the maximum charge and discharge current for this battery?
The maximum charge and discharge current is 100A.
What are the operating temperature ranges for charging and discharging?
The battery can be charged in temperatures ranging from 0°C to 60°C and discharged between -20°C to 65°C.
Can this battery be customized for specific applications?
Yes, the battery is customizable for OEM/ODM projects to meet specific requirements.
What is the charge cut-off voltage for this battery?
The charge cut-off voltage is 54.75V.
Is this battery suitable for outdoor use?
Yes, with an IP65 protection level, it is dust-tight and water-resistant, making it suitable for outdoor applications.
How long does it take to fully charge this battery?
The battery can be fully charged in approximately 2.5 hours.
What warranty is offered with this battery?
The 48V 100Ah Lithium Battery comes with a 5-year warranty, ensuring quality and reliability.
