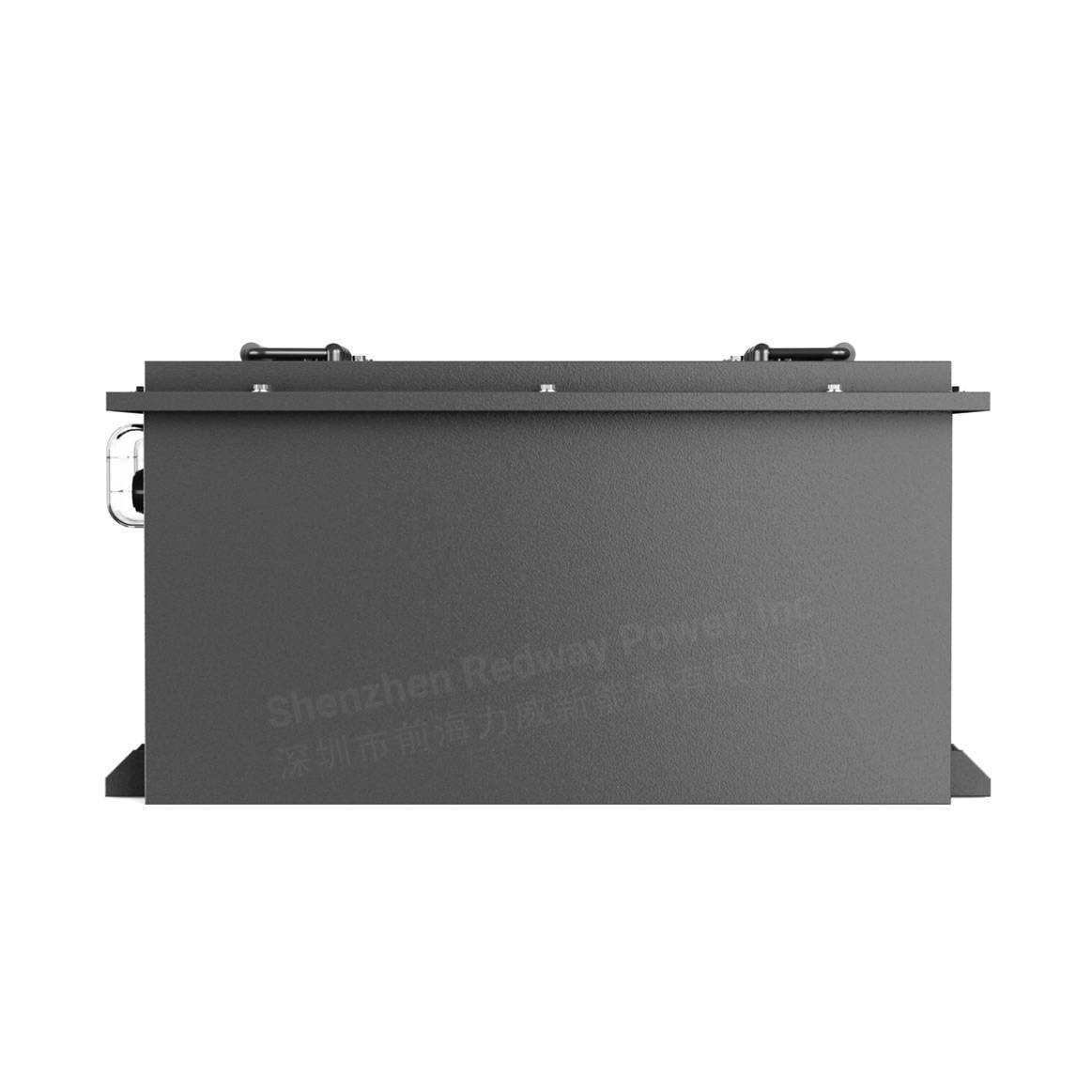

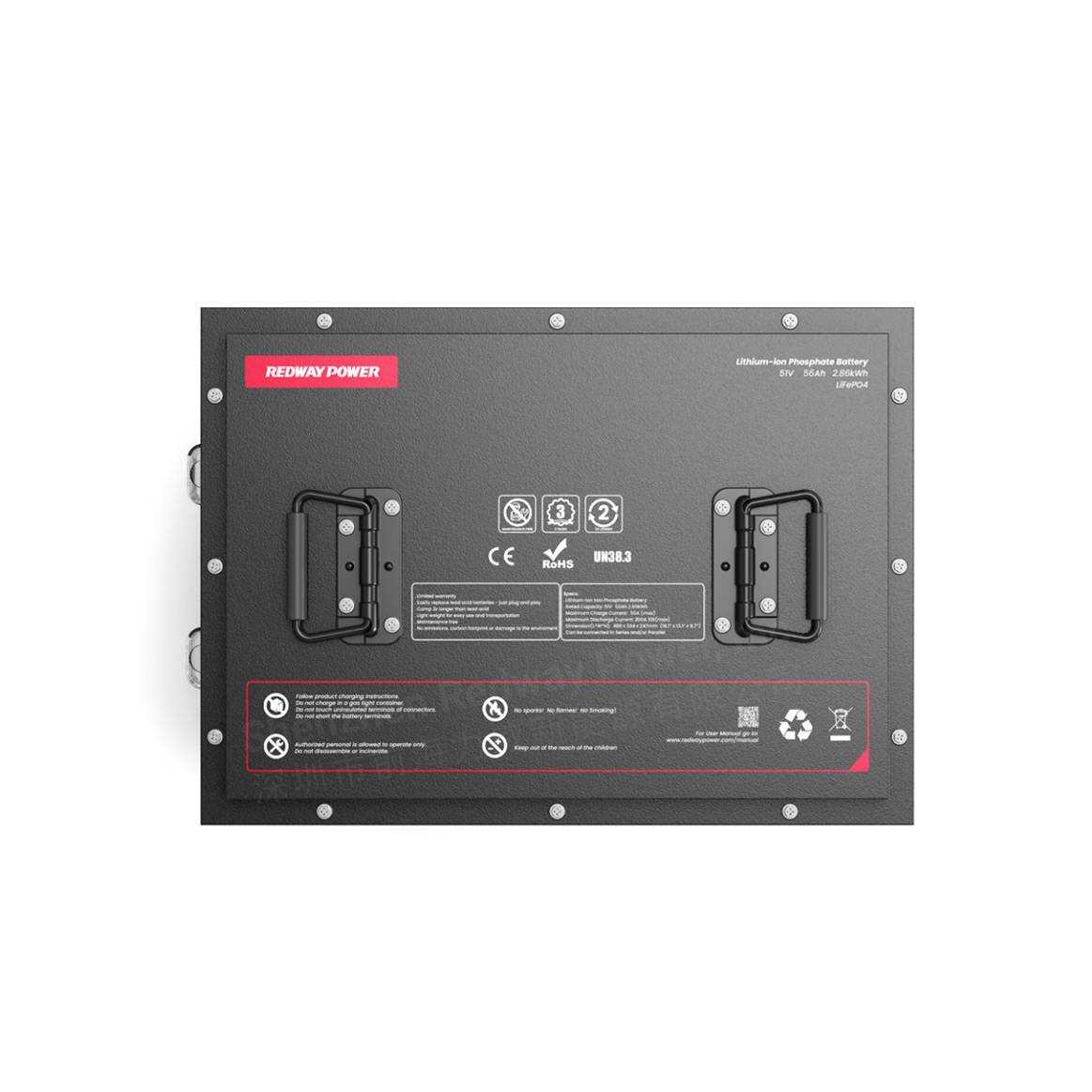

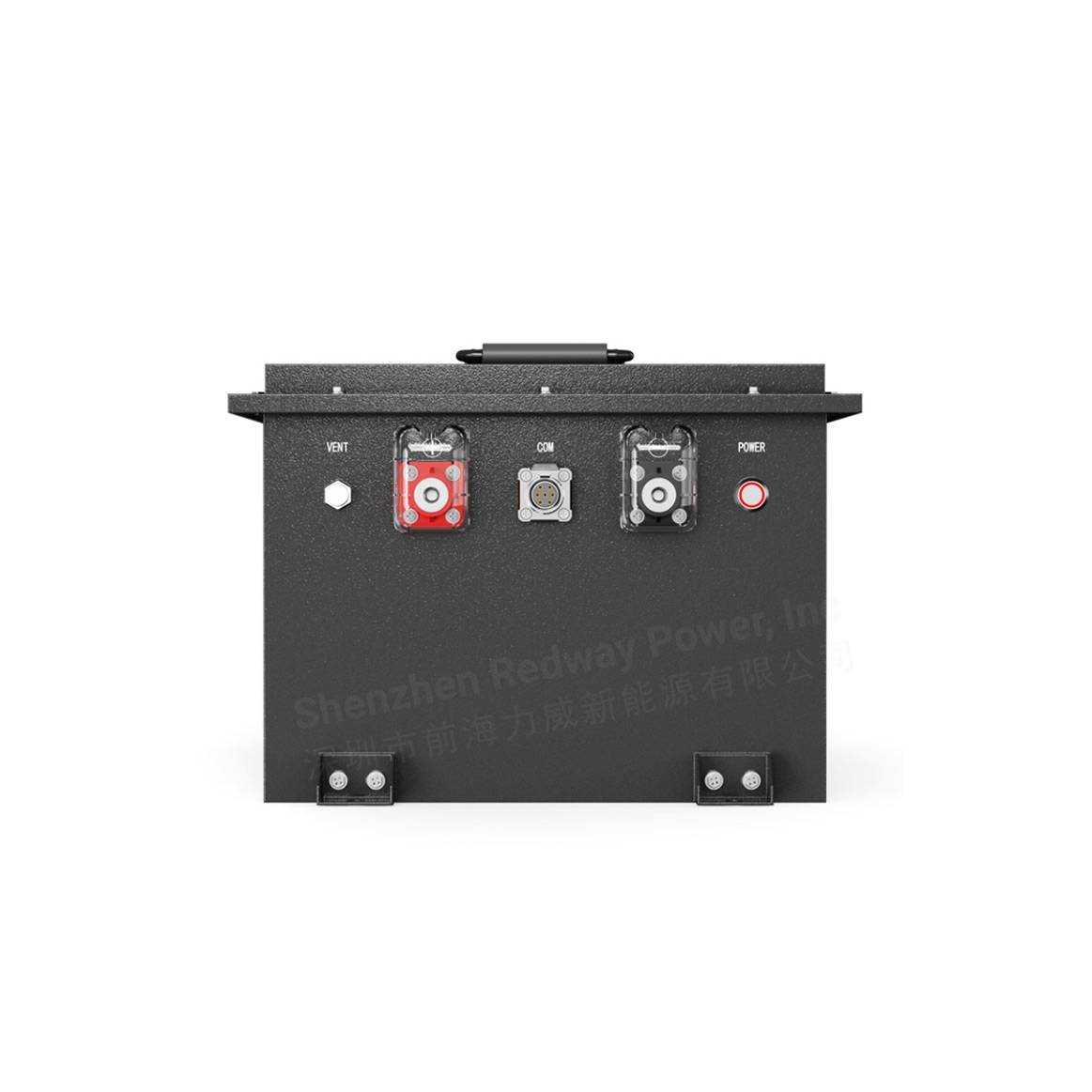

Introducing the Redway RG5156 51.2V 56Ah (48V 50Ah) Lithium Battery, an exceptional energy storage solution designed to meet the demands of both residential and commercial applications. Utilizing advanced LiFePO4 (Lithium Iron Phosphate) technology, this battery provides a reliable and efficient power source with a nominal energy output of 2.867kWh.
Key Features:
Nominal Voltage: 51.2V
Nominal Capacity: 56Ah
Energy Output: 2.867kWh
Max Charge Voltage: 58.4V
Discharge Cut-off Voltage: 40V
Continuous Charge/Discharge Current: 50A
Peak Discharge Current: 200A (for up to 10 seconds)
Dimensions: 500 x 355 x 247 mm (19.7 x 14 x 9.7 inches)
Weight: 34 kg (75 lbs)
IP Rating: IP66 (waterproof and dust-tight)
Max Parallel Connections: Up to 4 batteries for scalable energy solutions
Cycle Life: More than 5000 cycles at 80% Depth of Discharge (DOD)
Self-Discharge Rate: Approximately 3% per month
Operating Temperature Range: Charges from 0°C to 60°C and discharges from -20°C to 65°C
Advanced Communication and Safety:
Equipped with an RS485 communication interface, the Redway RG5156 allows for easy integration into smart energy systems. The built-in Battery Management System (BMS) from JBD/DALY ensures comprehensive protection against overcharging, overheating, and short circuits, enhancing the safety and reliability of your energy storage.
Customization Options:
Enhance your battery’s functionality with optional upgrades such as Bluetooth connectivity, GPS tracking, LCD display for real-time monitoring, and self-heating features for optimal performance in low temperatures.
Durable Construction:
The battery is housed in a robust metal shell, ensuring durability and longevity even in challenging environments. With a design life of up to 10 years and backed by a 3-year warranty, you can trust the Redway RG5156 to deliver consistent power over time.
Certifications:
This lithium battery complies with key safety standards, including UL1642, IEC62619, CE, MSDS, and UN38.3 certifications.Transform your energy storage capabilities with the Redway RG5156 51.2V 56Ah Lithium Battery—where cutting-edge technology meets unmatched performance! Ideal for solar power systems, backup power solutions, and more. For bulk orders or customization inquiries, please contact us today!
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
Specifications
RG5156
Specifications
Lithium Cell
LiFePO4 (LFP)
Nominal Voltage
51.2V
Nominal Capacity
56Ah
Nominal Energy
2.867kWh
Max Charge Voltage
58.4V
Discharge Cut-off Voltage
40V
Max Continues Charge Current
50A
Max Continues Discharge Current
50A
Peak Discharge Current
200A (10S)
Dimensions
[L x W x H]
500 x 355 x 247 mm
19.7 x 14 x 9.7 inches
Weight
34 kg
75 lbs
IP Rating
IP66
Communications
RS485
Max Parallel Connections
4
Internal Resistance
≤10mΩ
Cycle Life
>5000 cycles (80% DOD 0.5C)
Self-discharge
3% (Per month)
Communications
RS485
Charge Temperature
0 ~ 60°C
Discharge Temperature
-20 ~ 65°C
Storage Temperature (1 Month)
-20 ~ 45°C
Storage Temperature (1 Year)
0 ~ 35°C
Optional Upgrades
Bluetooth / App / 4G / GPS / Self-heating / LCD Display / RS232 / CAN-bus / RJ45 / Active Balance / Cooling Fan / Circuit Breaker / Solar MPPT / etc.
Standard Charge Current
22A (2.5 hours)
BMS
JBD / DALY BMS
Battery Shell
Metal
Warranty
3 Years
Silkscreen / Label / Laser Logo
Yes
User Manual
Yes
OEM / ODM
Yes
Shipment
Yes
Power Switch
Yes
Certifications
UL 1642 / IEC 62619 / CE / MSDS / UN38.3
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
Downloads
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
FAQs
What is the nominal energy capacity of the battery?
The Redway 48V 50Ah LiFePO4 Golf Cart Battery has a nominal energy capacity of 2.86kWh.
What applications is this battery suitable for?
This battery is designed for golf carts, sightseeing vehicles, low-speed vehicles (LSV), and similar applications.
How long is the cycle life of the battery?
The battery offers a cycle life exceeding 4000 cycles, ensuring durability and longevity.
What is the weight of the battery?
The battery weighs approximately 33 kg, making it compact and lightweight for easy installation and transport.
Is the battery customizable?
Yes, the battery can be customized with options like Bluetooth, WiFi, and GPS for smart connectivity.
What is the warranty period for the battery?
The Redway 48V 50Ah LiFePO4 Golf Cart Battery comes with a 3-year warranty.
What are the operating temperature ranges for this battery?
The battery is designed to operate in various climates, with specified charge and discharge temperature ranges.
What safety features does the battery include?
It includes an advanced Battery Management System (BMS) that protects against overcharge, over-discharge, and short circuits.
What is the delivery time for bulk orders?
The standard delivery time for bulk orders is 20 days.
What payment options are available for purchasing the battery?
Payments can be made via T/T, L/C, or PayPal.
If you have more specific questions or need further details, feel free to ask!
How do you wake up a 48V 50Ah LiFePO4 battery?
Waking up a deeply discharged 48V 50Ah LiFePO4 battery requires proper charging and maintenance. Neglecting these aspects can result in reduced performance and lifespan. Common methods include checking the voltage, applying a low current charge, performing equalization charging, and deep cycling. Follow a step-by-step guide to safely wake up the battery and consult professionals or manufacturer guidelines for optimal results.
Importance of Proper Charging and Maintenance: Proper charging and maintenance are essential for ensuring the longevity and performance of the 48V 50Ah LiFePO4 battery. Neglecting these aspects can lead to reduced performance and a shorter lifespan.
Common Methods of Waking Up the Battery: Common methods include checking the voltage, applying a low current charge, performing equalization charging, and deep cycling.
Safety Precautions and Professional Consultation: It is important to follow safety protocols, consult professionals, and refer to manufacturer guidelines before attempting any revival methods.
What voltage should I charge my 48V 50Ah LiFePO4 battery?
The 48V 50Ah LiFePO4 battery should be charged at a max charge voltage of around 54.75V. Following the manufacturer’s guidelines and recommendations is crucial for optimal performance and safety. Charging the battery at the correct voltage helps maintain its longevity and efficiency, ensuring reliable power storage for your energy needs.
Voltage for Charging: The 48V 50Ah LiFePO4 battery should be charged at a max charge voltage of around 54.75V.
Manufacturer’s Guidelines: It is important to follow the manufacturer’s guidelines and recommendations for charging to ensure optimal performance and safety.
Longevity and Efficiency: Charging the battery at the correct voltage helps maintain its longevity and efficiency, providing reliable power storage.
How long does a 48V 50Ah lithium ion battery last for golf cart?
A 48V 50Ah lithium-ion battery for a golf cart can last anywhere from 5 to 10 years or even longer with proper care and maintenance. Unlike traditional lead-acid batteries that typically last around 3-5 years, lithium batteries provide a significantly extended lifespan. Factors such as usage patterns, charging and discharging cycles, operating conditions, and maintenance practices influence battery longevity. By following recommended maintenance practices and adhering to manufacturer guidelines, you can maximize the lifespan of your lithium golf cart battery and enjoy reliable power for years to come.
Extended Lifespan of Lithium Batteries: A 48V 50Ah lithium-ion battery for a golf cart can last anywhere from 5 to 10 years or even longer, surpassing the typical lifespan of traditional lead-acid batteries.
Factors Influencing Battery Lifespan: Usage patterns, charging and discharging cycles, operating conditions, and maintenance practices play a crucial role in determining the longevity of lithium golf cart batteries.
Importance of Maintenance Practices: By following recommended maintenance practices, such as proper charging and discharging routines, avoiding extreme temperatures, and adhering to manufacturer guidelines, you can maximize the lifespan and performance of your lithium golf cart battery.
Can you use 48V 50Ah LiFePO4 batteries in a golf cart?
Using 48V 50Ah LiFePO4 batteries in a golf cart is safe and suitable. However, it is crucial to avoid opening the battery pack due to potential dangers. Lithium-ion batteries are generally safe to use, but opening them can lead to fire hazards and chemical reactions. It is important to adhere to safety precautions, such as avoiding exposure to high temperatures and not cutting into the battery pack. Consult professionals for battery maintenance and replacements to ensure optimal performance and safety.
Safety of LiFePO4 Batteries: 48V 50Ah LiFePO4 batteries are safe and suitable for use in golf carts, providing reliable power for various applications.
Dangers of Opening Battery Packs: Opening the battery pack can lead to potential risks, including fire hazards and chemical reactions. Lithium-ion batteries are sealed for safety reasons.
Adhering to Safety Precautions: It is crucial to follow safety precautions, such as avoiding exposure to high temperatures and refraining from cutting into the battery pack.
Consult Professionals for Maintenance: For battery maintenance and replacements, it is recommended to consult professionals who can ensure optimal performance and safety.
How Do Lithium Batteries Improve Golf Cart Performance?
Lithium batteries significantly improve golf cart performance by offering extended range, faster charging, lightweight design, higher power output, consistent performance, longer lifespan, minimal maintenance, enhanced durability, eco-friendly operation, and improved performance on hilly terrains. With these advancements, lithium batteries have revolutionized golf cart performance, providing golfers with a more efficient and enjoyable golfing experience. Choose lithium batteries to unleash the full potential of your golf cart.
Extended Range: Lithium batteries offer significantly longer range compared to traditional lead-acid batteries, allowing golfers to play more rounds without worrying about power depletion.
Faster Charging: With faster charging times, golf carts equipped with lithium batteries can be ready to go in a short amount of time.
Lightweight Design: Lithium batteries are lighter than lead-acid batteries, resulting in improved handling and maneuverability on the golf course.
Higher Power Output: Lithium batteries provide higher power output, enabling golf carts to accelerate faster and conquer hilly terrains with ease.
Consistent Performance: Throughout their lifespan, lithium batteries maintain a consistent level of performance, ensuring reliable power delivery.
Longer Lifespan: Compared to lead-acid batteries, lithium batteries have a longer lifespan, reducing the need for frequent battery replacements.
Minimal Maintenance: Lithium batteries require minimal maintenance, eliminating the need for regular water top-ups or charge level checks.
Enhanced Durability: Lithium batteries are more resilient and can withstand a wider range of temperatures and weather conditions.
Eco-Friendly Operation: Lithium batteries are a greener option, as they do not contain harmful chemicals or produce toxic gases during charging or disposal.
Improved Performance on Hilly Terrains: With consistent power delivery, lithium batteries excel in conquering hilly terrains on golf courses.
What should one consider when looking for the right deep cycle battery for a golf cart?
Consider battery type (lead-acid vs. lithium), capacity (Ah), voltage compatibility, cycle life, weight, and maintenance requirements. Ensure the battery fits your golf cart’s specifications and meets your power needs.
What categories of golf cart batteries are available?
Golf cart batteries are categorized into lead-acid (flooded, AGM, Gel) and lithium (LiFePO4) types. Each category offers different benefits in terms of maintenance, lifespan, and performance.
What are the different types of bundles available for golf cart batteries?
Bundles typically include single batteries, double (two batteries), and quadruple (four batteries) packs. Bundles are designed to meet various voltage and capacity requirements for golf carts.
What is the highest capacity available for GC2 LiFePO4 golf cart batteries?
The highest capacity available for GC2 LiFePO4 golf cart batteries is typically 108Ah, providing extended runtime and performance for golf carts.
Are there any NON CAN options available for GC2 LiFePO4 golf cart batteries?
Yes, there are NON CAN (Controller Area Network) options available for GC2 LiFePO4 golf cart batteries, offering flexibility in battery management and compatibility with various golf cart systems.
How many different capacity options are available for 36V GC2 LiFePO4 golf cart batteries?
36V GC2 LiFePO4 golf cart batteries are commonly available in capacities ranging from 54Ah to 108Ah, offering different levels of power and runtime to suit various needs.
What are the specifications of the Ionic Lithium 48V 108Ah GC2 LiFePO4 Golf Cart Quadruple Bundle?
The Ionic Lithium 48V 108Ah GC2 LiFePO4 Golf Cart Quadruple Bundle includes four 48V 108Ah LiFePO4 batteries, providing a total capacity of 432Ah. It features high energy density, long cycle life, and built-in Battery Management System (BMS).
What are the specifications of the Ionic Lithium 36V 108Ah GC2 LiFePO4 Golf Cart Quadruple Bundle?
The Ionic Lithium 36V 108Ah GC2 LiFePO4 Golf Cart Quadruple Bundle includes four 36V 108Ah LiFePO4 batteries, totaling 432Ah. It offers high capacity, extended range, and efficient power management.
What are the features of the Ionic Lithium 48V 54Ah GC2 LiFePO4 Golf Cart Double Bundle?
The Ionic Lithium 48V 54Ah GC2 LiFePO4 Golf Cart Double Bundle includes two 48V 54Ah LiFePO4 batteries. It features a total capacity of 108Ah, compact design, long cycle life, and built-in BMS for safety.
What are the features of the Ionic Lithium 36V 54Ah GC2 LiFePO4 Golf Cart Double Bundle?
The Ionic Lithium 36V 54Ah GC2 LiFePO4 Golf Cart Double Bundle includes two 36V 54Ah LiFePO4 batteries, providing 108Ah total capacity. It offers high energy density, reliability, and advanced safety features with a built-in BMS.
