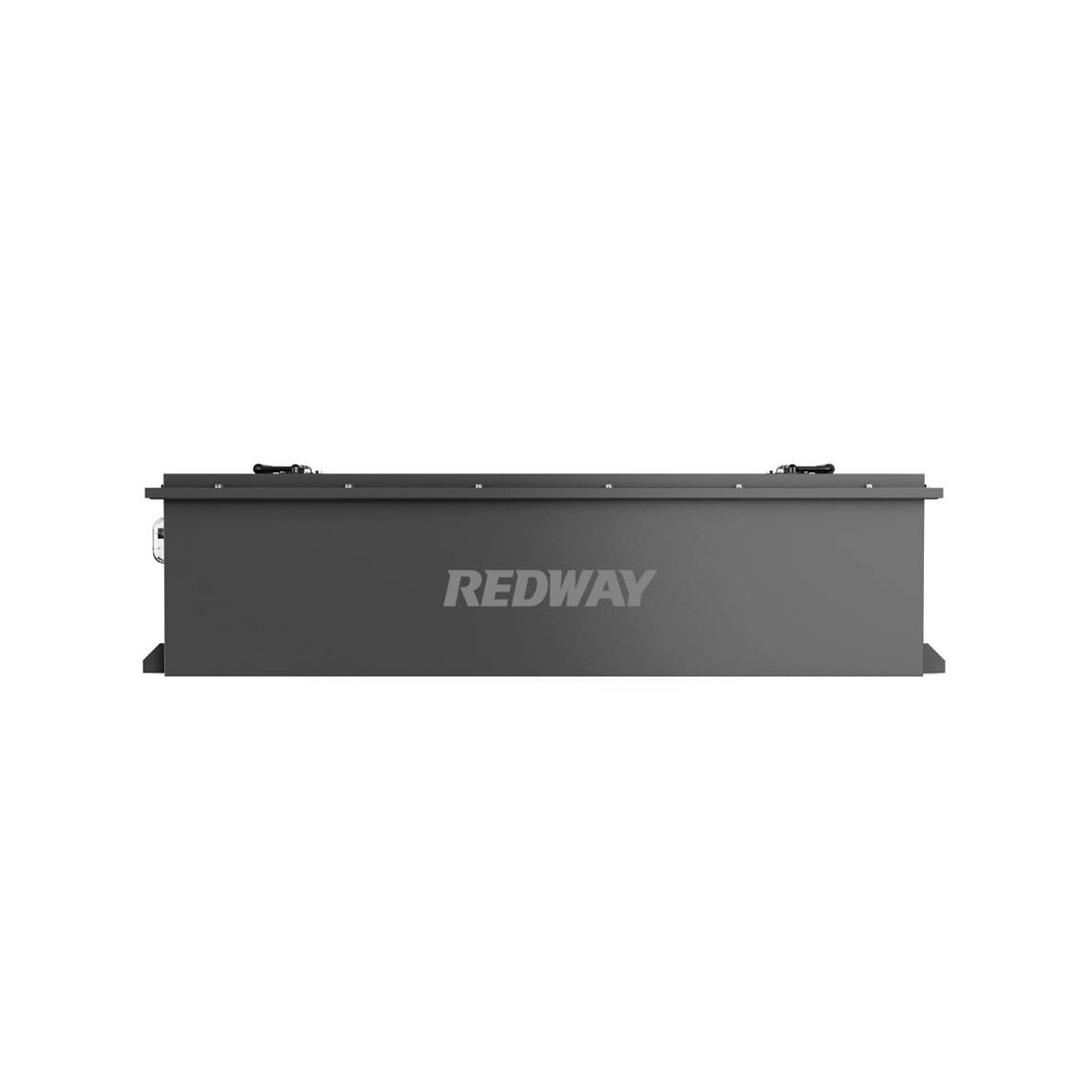

This 48V 200Ah golf cart lithium-ion phosphate battery from Redway, which is one of the Top 5 Best Selling LiFePO4 Batteries 2024 from Redway, is ideal for marine, electric vehicles and solar applications. It maintains consistent power and features an M10 terminal type and built-in overcharge protection. With a much longer life span than lead-acid batteries, they are much lighter and more practical than lead-acid batteries.
Among 48V 200Ah golf cart lithium batteries in its class, this mighty beast battery is the most cost-effective (price/kWh) on the market. It comes with a 200A BMS System that ensures maximum capacity and longevity, so you can use it anywhere you need power!
Because lithium batteries have a built-in battery management system (BMS) and an anti-inflammatory coating, they can be cycled up to 6000 times at 80% depth of discharge and produce no emissions.
All Redway LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
Technical Data
Applications
Golf Cart, Sightseeing Car, Club Car, 2~3 Wheels Electric Scooter, Electric Rickshaw, E-Trishaw, Floor Scrubber, Floor Cleaning Machine, AGV, LGV, RGV, AMR, Electric Forklift, Trolling Motor, etc.
Lithium-ion Cell Type
LiFePO4 (LFP)
Nominal Voltage
51.2V
Nominal Capacity
210Ah
Nominal Energy
10.75kWh
Max Charge Voltage
58.4V
Discharge Cut-off Voltage
40V
Standard Charge Current
40A (5 hours)
Max Continues Charge Current
200A
Max Continues Discharge Current
200A
Peak Discharge Current
200A (30S)
Dimensions [L x W x H]
940 × 340 × 250 mm
Weight
90 kg
IP Rating
IP67
Max Series Connection
4S
Max Parallel Connection
4P
Cycle Life
>6000 cycles (DOD 80% 0.2C)
Self-discharge
2% (per month)
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 60°C
Storage Temperature
0°C ~ 35°C
Charger
Optional
LCD Display
Optional
Power Switch
Yes
Communication
RS485 / CAN-bus
Optional Upgrades
Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD Display / RS232 / Anti-theft / Fans Cooling / Heatsink / Active Balance / Solar MPPT / etc.
BMS
Smart BMS Protection: Over current / Over charge / Over discharge / Overload / Over voltage / Low voltage / Overheat / Over temperature / Low temperature / Lithium Cells Automatic Balance / etc.
Battery Monitoring
Bluetooth APP
Terminal
M8
Internal Fixation
Metal bracket or EVA sponge
Battery Case
Metal
Design Life
20 Years
Warranty
5 Years
Silkscreen / Label / Laser Logo
Yes
User Manual
Yes
OEM / ODM / Customization
Yes
Shipment
Yes
Certifications
UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Middle East: ESMA / SASO South Africa: SABS MSDS / UN38.3
