Description

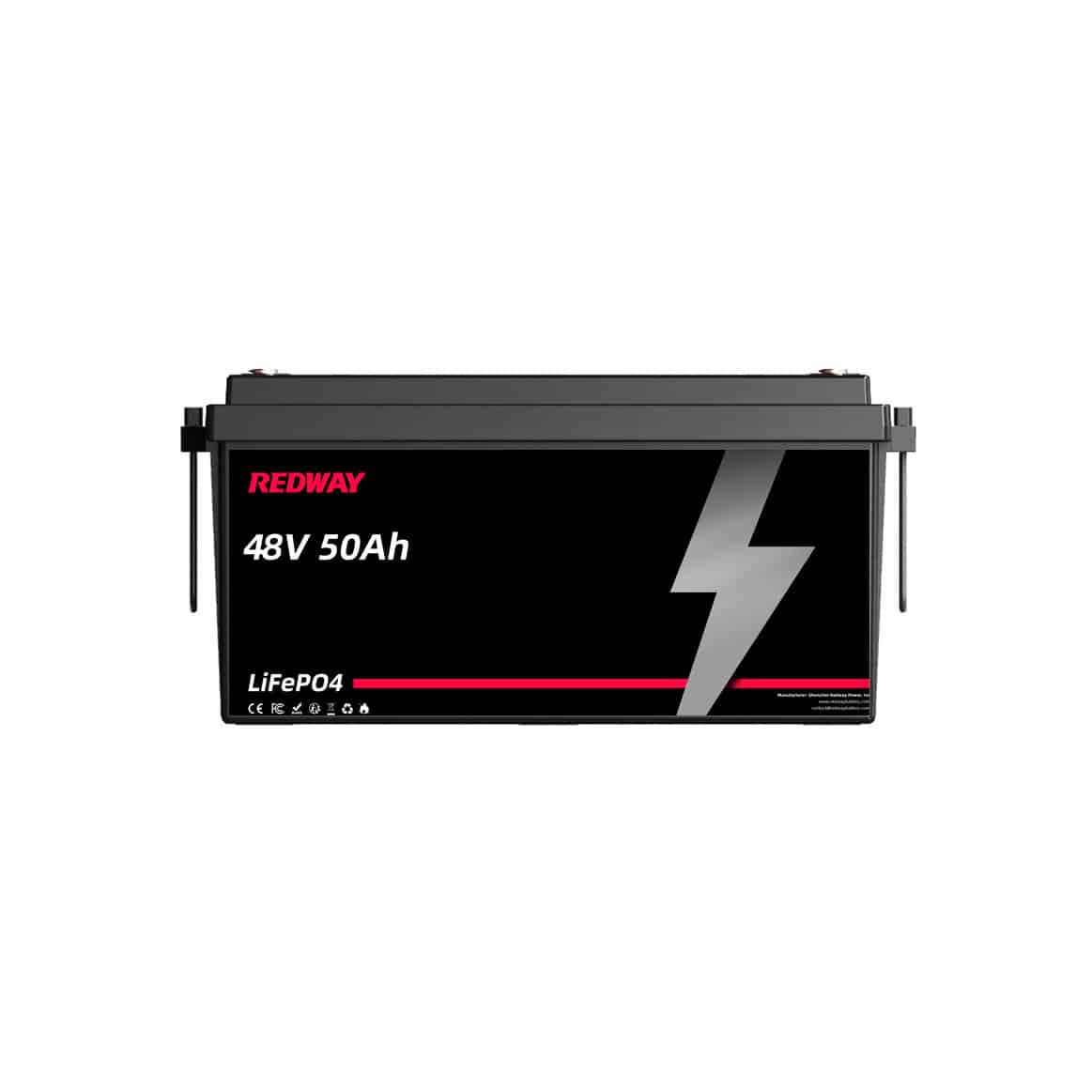

Redway 48V 50Ah Lithium-Ion Phosphate batteries can be used for a wide variety of applications. These batteries can be combined in a modular design of up to 10 batteries to provide a huge 24000Wh of power.
In comparison to sealed lead acid batteries, Redway LiFePO4 48V Lithium Iron Phosphate Batteries provide twice the power, half the weight, and 8 times more life, require no maintenance, are very safe, and have very low toxicity. LiFePO4 batteries offer a lighter weight, longer life and higher capacity battery solution for demanding applications.
With its M10 terminal type and built-in overcharge protection, the battery is ideal for marine, electric vehicle, and solar applications. With its high reliability and up to ten times longer life span than lead-acid batteries, it is much lighter and more convenient than lead-acid batteries.
51.2V 50Ah LiFePO4 Lithium Battery Specifications
| Specifications | |
|---|---|
| Lithium Cell | LiFePO4 (LFP) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 50Ah |
| Nominal Energy | 2560Wh |
| Max Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max Continues Charge Current | 50A |
| Max Continues Discharge Current | 50A |
| Dimensions [L x W x H] |
501 x 185 x 242 mm 19.7 x 7.3 x 9.5 inches |
| Weight | 20 kg 44 lbs |
| IP Rating | IP65 |
| Max Parallel Connections | 6 |
| Cycle Life | >5000 cycles (80% DOD 0.5C) |
| Self-Discharge | 3% (per month) |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| BMS | JBD / DALY BMS Protection |
| Optional Upgrades | Self-heating / Bluetooth / App / 4G / GPS / WiFi / RS485 / RJ45 / SOC LCD Display / Circuit Breaker / Power Switch / Cooling Fan / Battery Internal Cell Fixation Metal Bracket / Active Balance / Solar MPPT / etc. |
| Normal Charger / Fast Charger | Optional |
| Terminal | M8 |
| Battery Shell | ABS |
| Design Life | 10 Years |
| Warranty | 3 Years |
| Label / Silkscreen / Laser Logo | Yes |
| User Manual | Yes |
| OEM | Yes |
| Shipment | Yes |
| Certifications | UL 1642 / IEC 62619 / CE / UN38.3 / MSDS |
