Description
Redway Battery offers a full range of lithium batteries in BCI Group 24, Group 27, Group 31, Group 34, Group 35, Group 51, Group 51R, Group 78, Group 8D dimensions, etc. We are a professional lithium battery factory. We undertake OEM/ODM production of lithium battery, please Contact us.

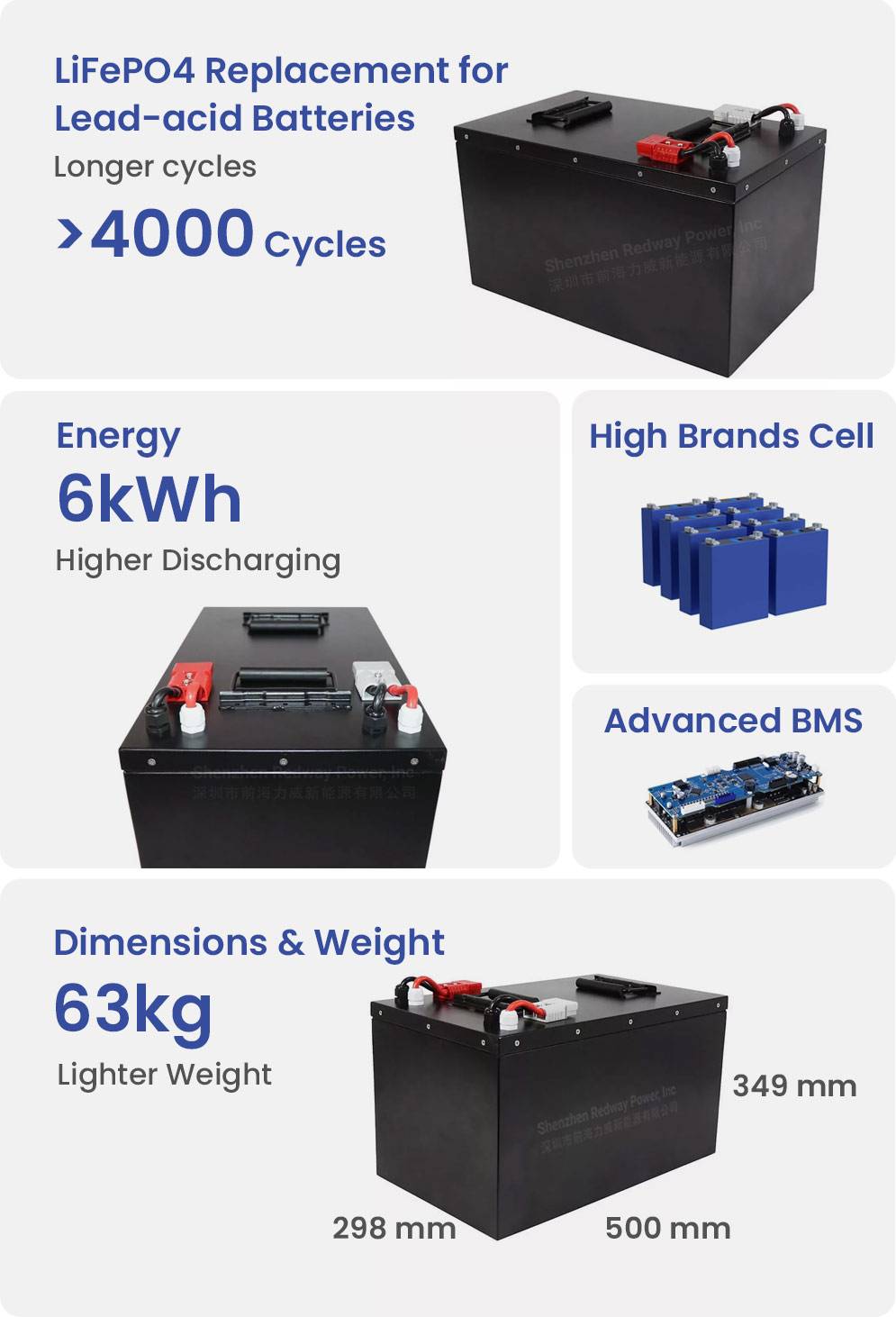

60V 100Ah Lithium Battery Specifications
| 60V100Ah | Specifications |
|---|---|
| Lithium Cell | LiFePO4 (LFP) |
| Nominal Voltage | 60.8V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 6.08kWh |
| Max Charge Voltage | 69.35V |
| Discharge Cut-off Voltage | 47.5V |
| Max Continues Charge Current | 100A |
| Max Continues Discharge Current | 100A |
| Peak Discharge Current | 200A (10S) |
| Dimensions [L x W x H] |
500 x 298 x 349 mm 19.7 x 11.7 x 13.7 inches |
| Weight | 63 kg 139 lbs |
| IP Rating | IP66 |
| Max Parallel Connections | 4 |
| Internal Cells Series | 19 |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >5000 cycles (80% DOD 0.5C) |
| Self-Discharge | 3% (Per month) |
| Power Switch | Yes |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| Storage Temperature (1 Month) | -20 ~ 45°C |
| Storage Temperature (1 Year) | 0 ~ 35°C |
| Bluetooth App | Yes |
| Optional Upgrades | Self-heating / LCD Display / 4G / GPS / RS485 / RS232 / CAN-bus / RJ45 / Active Balance / Cooling Fan / Power Switch / Circuit Breaker / Solar MPPT / etc. |
| Standard Charge Current | 40A (5 hours) |
| BMS | JBD / DALY BMS |
| Terminal | Anderson Connector |
| Battery Shell | Metal |
| Warranty | 3 Years |
| Silkscreen / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipment | Yes |
| Design Life | 10 Years |
| Certifications | UL 1642 / IEC 62619 / CE / MSDS / UN38.3 |
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
