Redway Battery offers a full range of lithium batteries in BCIGroup 24, Group 27, Group 31, Group 34, Group 35, Group 51, Group 51R, Group 78, Group 8D dimensions, etc. We are a professional lithium battery factory. We undertake OEM/ODM production of lithium battery, please Contact us.

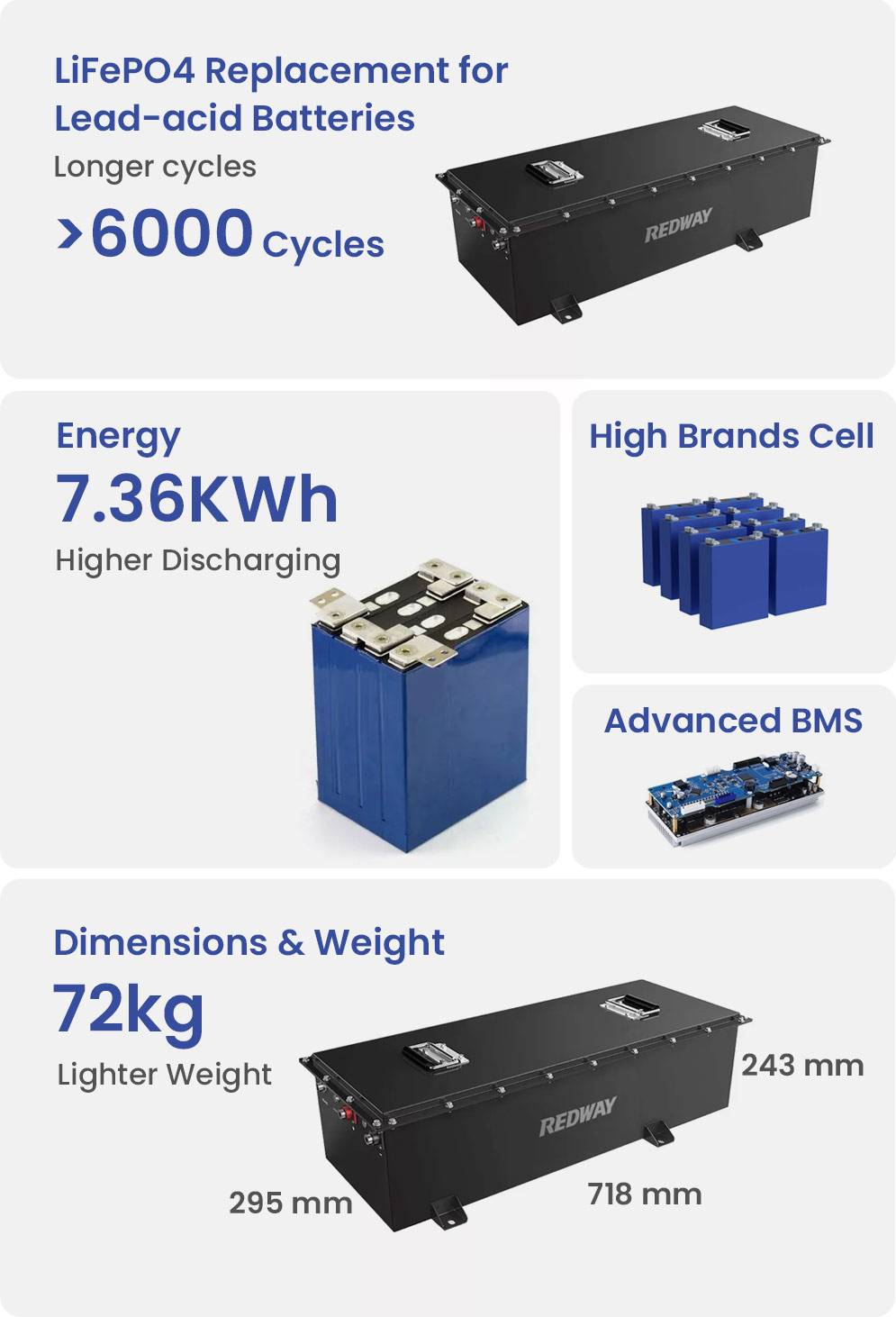

76.8V 100Ah Lithium Battery Specifications
Specifications
Lithium Cell
LiFePO4 (LFP)
Nominal Voltage
76.8V
Nominal Capacity
100Ah
Nominal Energy
7.68kWh
Max Charge Voltage
87.6V
Discharge Cut-off Voltage
60V
Max Continues Charge Current
100A
Max Continues Discharge Current
100A
Peak Discharge Current
200A (10S)
Dimensions
[L x W x H]
718 x 295 x 243 mm
28.3 x 11.6 x 9.6 inches
Weight
72 kg
159 lbs
IP Rating
IP66
Communications
RS485
Max Parallel Connections
4
Internal Resistance
≤10mΩ
Cycle Life
>5000 cycles (80% DOD 0.5C)
Self-discharge
3% (Per month)
Charge Temperature
0 ~ 60°C
Discharge Temperature
-20 ~ 65°C
Storage Temperature (1 Month)
-20 ~ 45°C
Storage Temperature (1 Year)
0 ~ 35°C
Optional Upgrades
Bluetooth / App / 4G / GPS / Self-heating / LCD Display / RS232 / CAN-bus / RJ45 / Active Balance / Cooling Fan / Circuit Breaker / Solar MPPT / etc.
Charger
22A (5 hours)
BMS
JBD / DALY BMS
Battery Shell
Metal
Warranty
3 Years
Silkscreen / Label / Laser Logo
Yes
User Manual
Yes
OEM / ODM
Yes
Design Life
10 Years
Certifications
UL 1642, IEC 62619, CE, UN38.3, MSDS
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
Specifications
Specifications
Lithium Cell
LiFePO4 (LFP)
Nominal Voltage
76.8V
Nominal Capacity
100Ah
Nominal Energy
7.68kWh
Max Charge Voltage
87.6V
Discharge Cut-off Voltage
60V
Max Continues Charge Current
100A
Max Continues Discharge Current
100A
Peak Discharge Current
200A (10S)
Dimensions
[L x W x H]
718 x 295 x 243 mm
28.3 x 11.6 x 9.6 inches
Weight
72 kg
159 lbs
IP Rating
IP66
Communications
RS485
Max Parallel Connections
4
Internal Resistance
≤10mΩ
Cycle Life
>5000 cycles (80% DOD 0.5C)
Self-discharge
3% (Per month)
Charge Temperature
0 ~ 60°C
Discharge Temperature
-20 ~ 65°C
Storage Temperature (1 Month)
-20 ~ 45°C
Storage Temperature (1 Year)
0 ~ 35°C
Optional Upgrades
Bluetooth / App / 4G / GPS / Self-heating / LCD Display / RS232 / CAN-bus / RJ45 / Active Balance / Cooling Fan / Circuit Breaker / Solar MPPT / etc.
Charger
22A (5 hours)
BMS
JBD / DALY BMS
Battery Shell
Metal
Warranty
3 Years
Silkscreen / Label / Laser Logo
Yes
User Manual
Yes
OEM / ODM
Yes
Design Life
10 Years
Certifications
UL 1642, IEC 62619, CE, UN38.3, MSDS
Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!
