Description

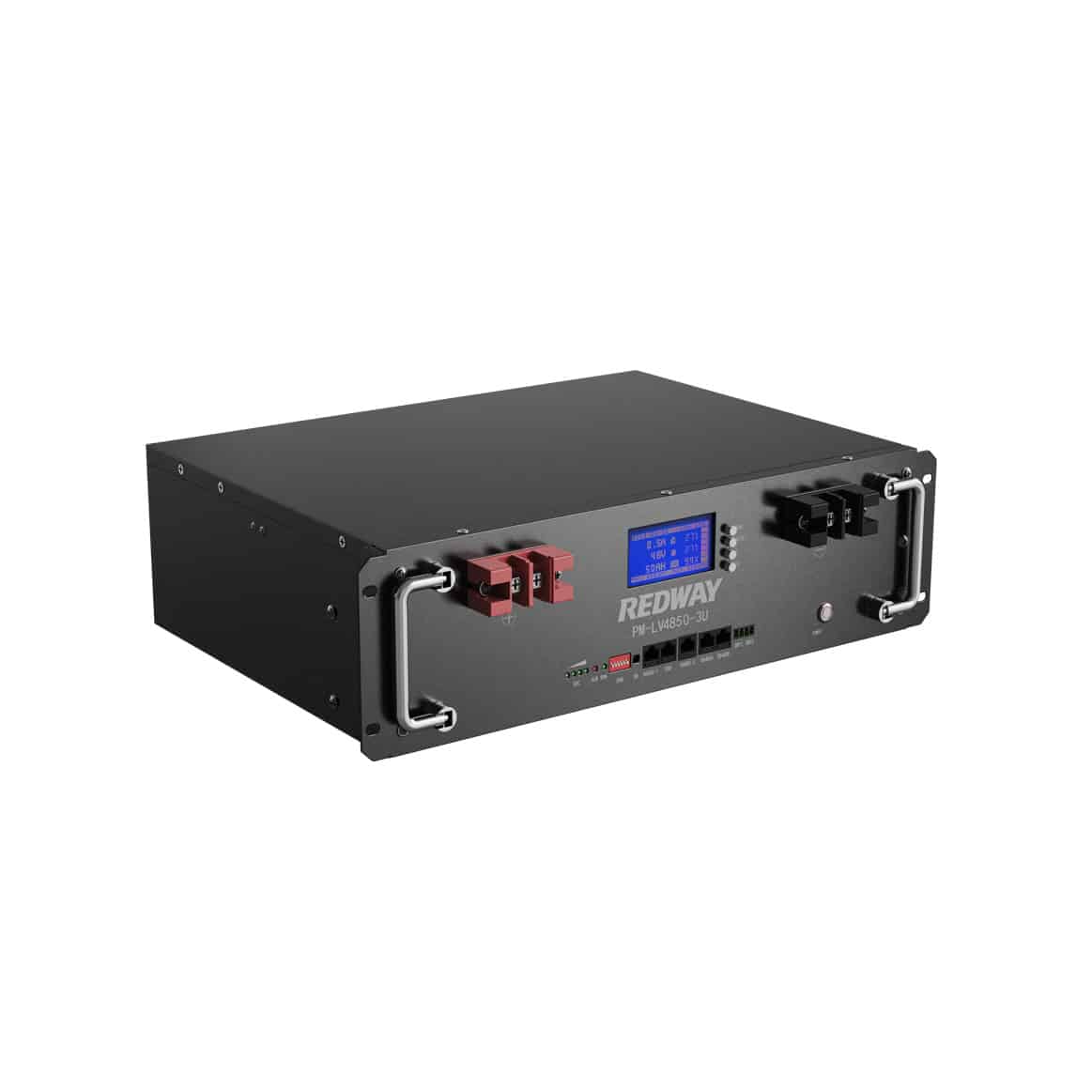

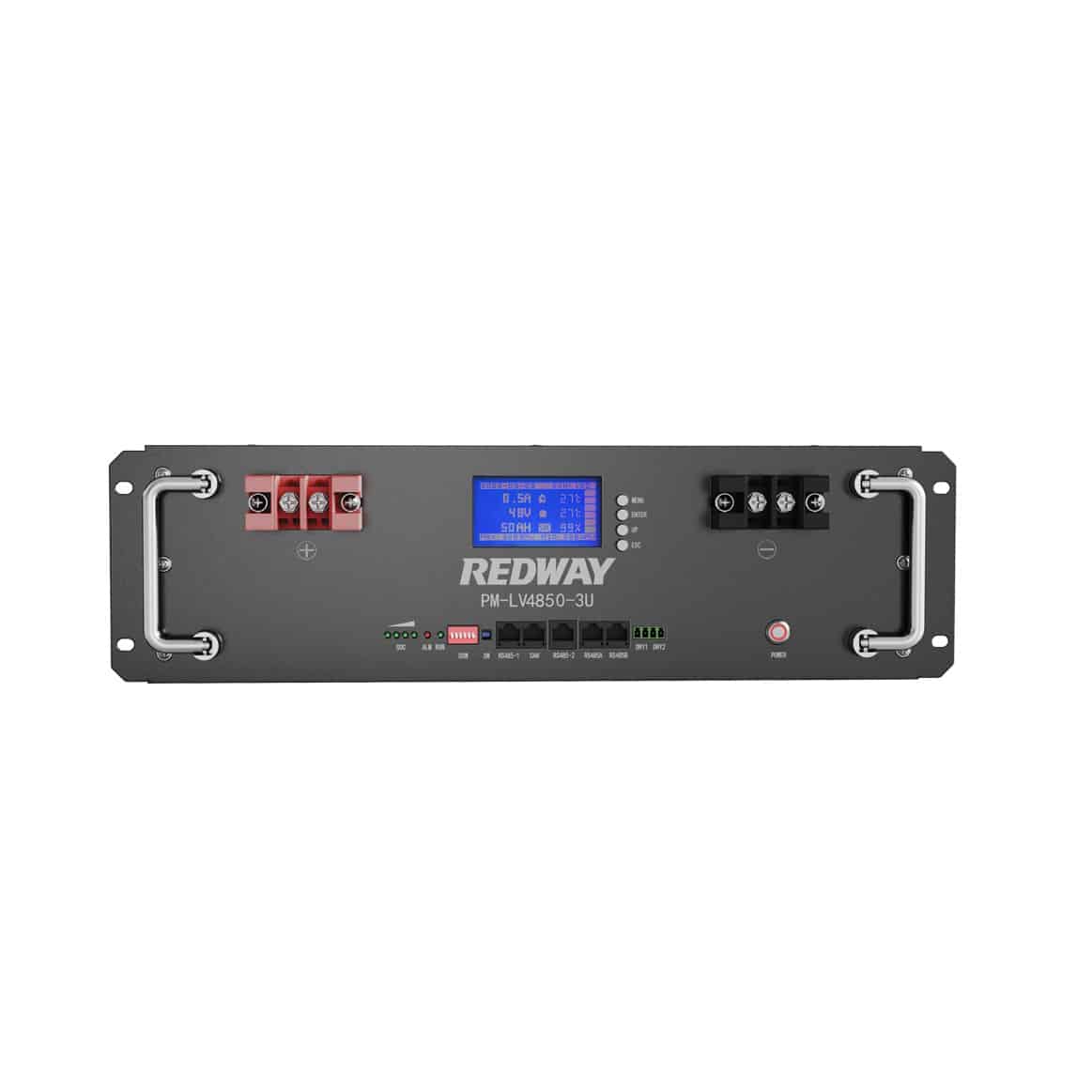

Redway’s PM-LV4850-3U is the perfect energy storage solution for your business. Using LiFePO4 battery technology, it has a capacity of 50Ah and a nominal energy of 2.4kWh. With a nominal voltage of 48V and a working voltage ranging from 37.5V to 54.75V, it is highly adjustable. With this power storage option, you can run your business smoothly for many years to come. It used for hybrid and off-grid applications ESS System, Server Room, Data Center and Telecom.
As part of its modular design, the PM-LV4850-3U can be tailored to meet organizations’ specific energy storage requirements by enabling them to tailor the solution to their needs. The net weight of this battery module is only 23kg, making it easy to install and easy to integrate into any commercial setting. Aside from its durability and long-lasting energy storage capacity, it also has a cycle life of up to 8000 cycles (80% DOD). In addition, the PM-LV4850-3U has an IP21 rating. It complies with 19 inches rack cabinet requirements.
Finally, Redway’s PM-LV4850-3U is a flexible, safe, and dependable energy storage solution that will keep your company running smoothly and efficiently for many years to come. Due to its modern LiFePO4 battery technology, flexible modular design options, and compatibility with a wide range of major brand inverters, this energy storage system is ideal for organizations looking for an efficient, dependable, and cost-effective energy storage solution.
Battery Feautres:
High Quality and Long Lifespan
Uses CATL/EVE lithium battery cells, 8000 cycles Lifespan.
High Safety
Uses JBD smart BMS for battery protection.
High Scalability
Max Parallel Connection: 16~64.
Factory Price
Redway is lithium battery factory. We have lithium battery factories in Dongguan and Huizhou in China, specializing in the production of Rack-mounted lithium batteries and various other lithium battery products.
Product Specifications:
Lithium Cell Type: LiFePO4 (LFP)
Nominal Voltage: 48V
Nominal Capacity: 50Ah
Nominal Energy: 2.4kWh
Max Charge Voltage: 54.75V
Discharge Cut-off Voltage: 37.5V
Dimensions (L*W*H): 440 x 440 x 136 mm (3U)
Weight: ~23kg
Max Continuous Charge Current: 50A
Max Continuous Discharge Current: 50A
Max Parallel Connection: 16 (The maximum support can be expanded to 64)
Cycle Life: >8000 Cycles (80%DOD)
Design Life: 20 Years
IP Rating: IP21
Communication: RS485, CAN-bus
Terminal: M6
BMS Monitoring & Protection: Bulit-in smart JBD BMS
LCD Display: Yes
User Manual: Yes
Optional Upgrades: Bluetooth, App, PC Software, WiFi, 4G, GPS, RS232, Self-heating, SNMP, TACP, Circuit Breaker, Power Switch, Thermal Aerosol Fire Suppression Device, etc.
Compatible Inverters: Deye, Victron, GOODWE, Sol-Ark, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, SMA, FOX, etc.
Charge Temperature: 0~60°C
Discharge Temperature: -20~60°C
Certification: UL 1642, UL 1973, IEC 62619, IEC 62133, CE, RoHS, UN38.3, MSDS
