Description

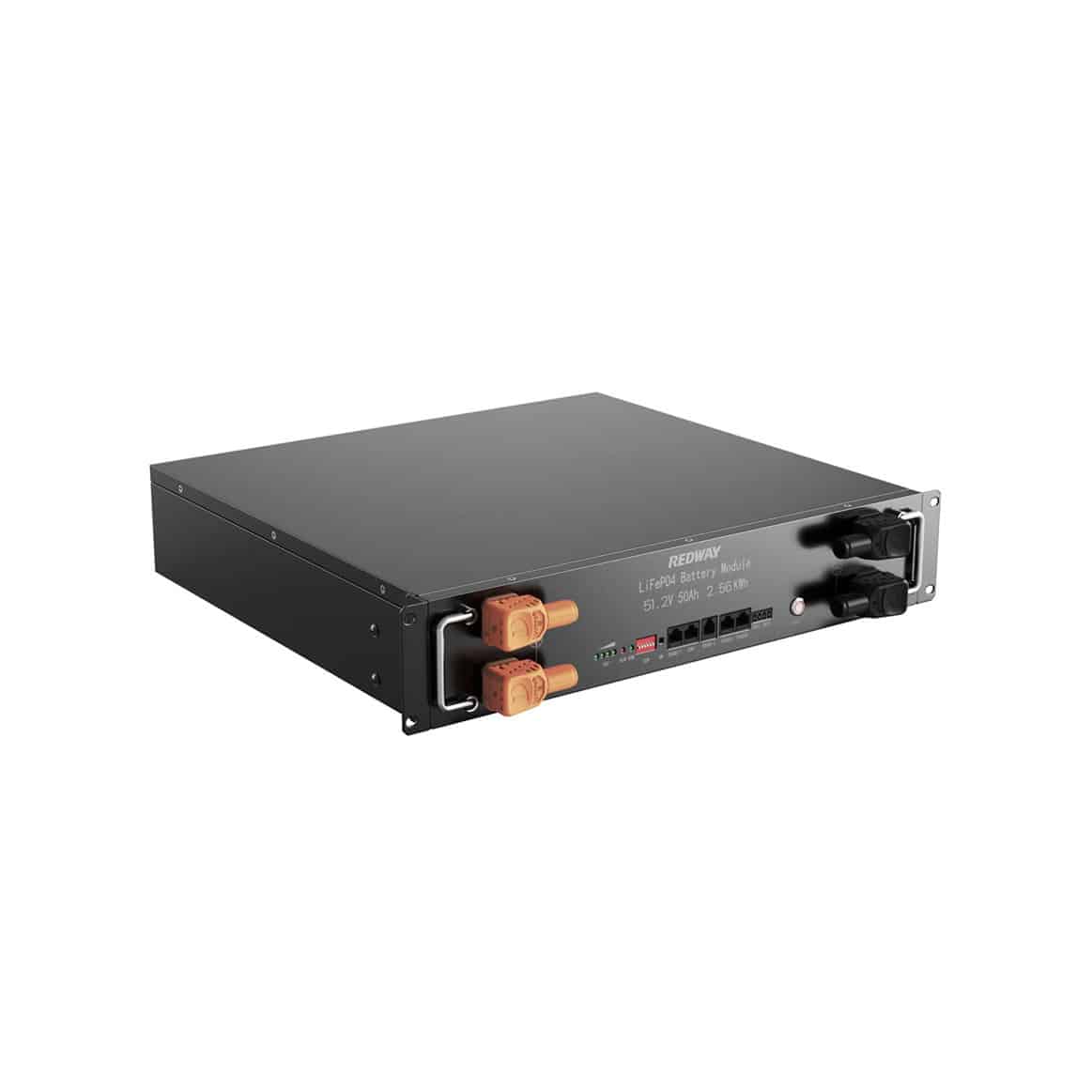

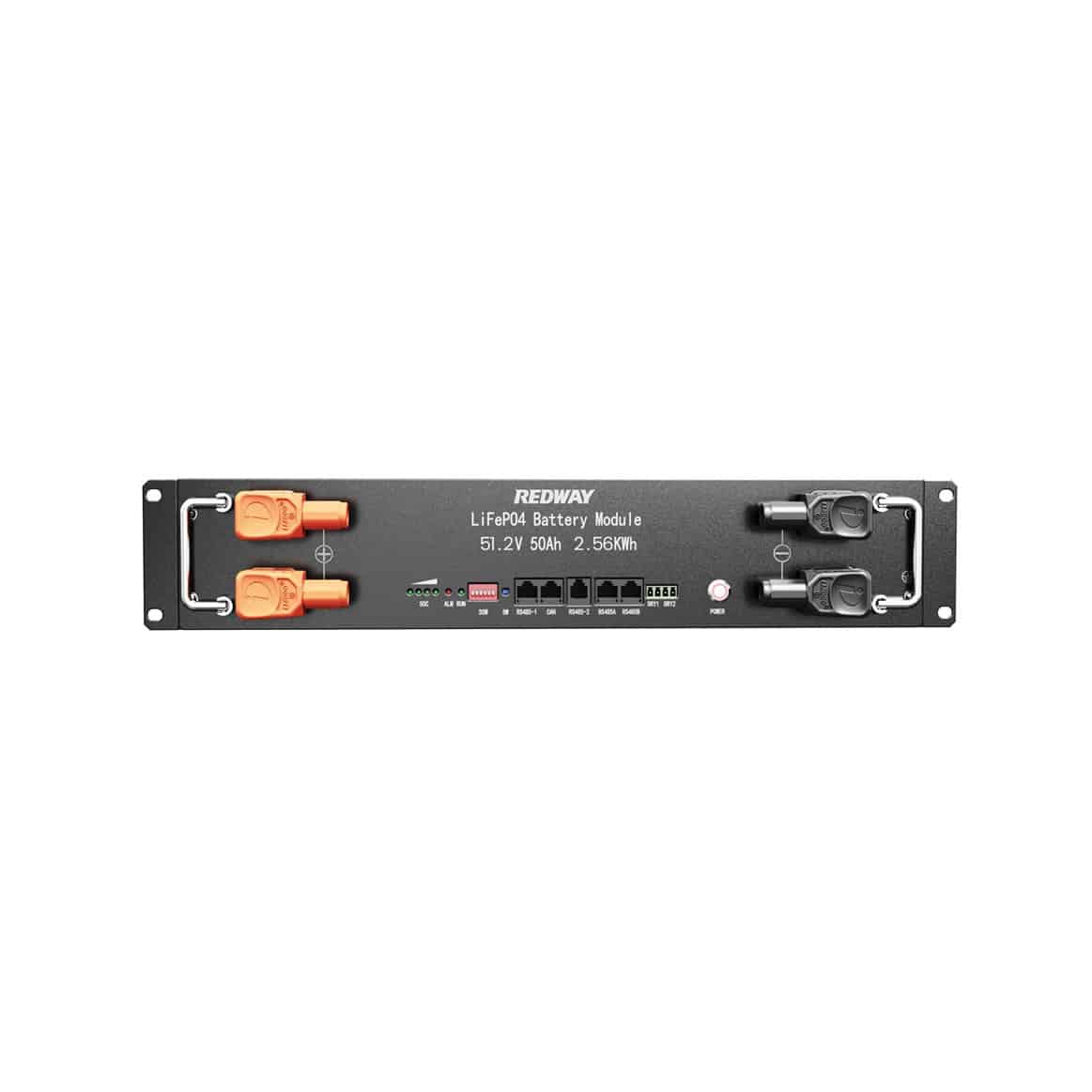

In hybrid and off-grid applications ESS System, Server Room, Data Center and Telecom, the PR-LV5150-2U-PRO Rack-mounted Lithium Battery offers reliable performance from lithium iron phosphate batteries.
Due to its nominal voltage of 51.2V and nominal capacity of 50Ah, the PR-LV5150-2U-PRO can produce 2.56kWh of energy, making it ideal for high-energy applications. It also has a range of working voltages between 40V and 58.4V, making it compatible with a variety of systems.
This battery has a small form that enables stack or cabinet installation and measures 410 x 440 x 88.5 mm and weight 23kg. The unit also comes with a built-in JBD smart BMS that monitors, protects, and alerts you to short circuits, overcharges, overdischarges, overcurrents, and temperatures. It complies with 19 inches rack cabinet requirements.
A maximum charge and discharge current of 50A is available at 0°C to 60°C for the PR-LV5150-2U-PRO. The device is suitable for many applications since it can operate between -20 and 60 degrees Celsius. Cycle life of over 8000 cycles at 25°C and 80% DOD, it has a design life of 20 years.
Battery Feautres:
High Quality and Long Lifespan
Uses CATL/EVE lithium battery cells, 8000 cycles Lifespan.
High Safety
Uses JBD smart BMS for battery protection.
High Scalability
Max Parallel Connection: 16~64.
Factory Price
Redway is lithium battery factory. We have lithium battery factories in Dongguan and Huizhou in China, specializing in the production of Rack-mounted lithium batteries and various other lithium battery products.
Single Battery Specifications:
Lithium Cell Type: LiFePO4 (LFP)
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah
Nominal Energy: 2.56kWh
Max Charge Voltage: 58.4V
Discharge Cut-off Voltage: 40V
Dimensions (L*W*H): 410 x 440 x 88.5 mm (2U)
Weight: ~23kg
Max Continuous Charge Current: 50A
Max Continuous Discharge Current: 50A
Max Parallel Connection: 16 (The maximum support can be expanded to 64)
Cycle Life: >8000 Cycles (80%DOD)
Design Life: 20 Years
IP Rating: IP21
Communication: RS485, CAN-bus
Terminal: Single Core Energy Storage Connectors
BMS Monitoring & Protection: Bulit-in smart JBD BMS
User Manual: Yes
Optional Upgrades: Bluetooth, App, PC Software, WiFi, 4G, GPS, RS232, Self-heating, SNMP, TACP, LCD Display, Circuit Breaker, Power Switch, Thermal Aerosol Fire Suppression Device, etc.
Compatible Inverters: Deye, Victron, GOODWE, Sol-Ark, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, SMA, FOX, etc.
Charge Temperature: 0~60°C
Discharge Temperature: -20~60°C
Certification: UL 1642, UL 1973, IEC 62619, IEC 62133, CE, RoHS, UN38.3, MSDS
