Description

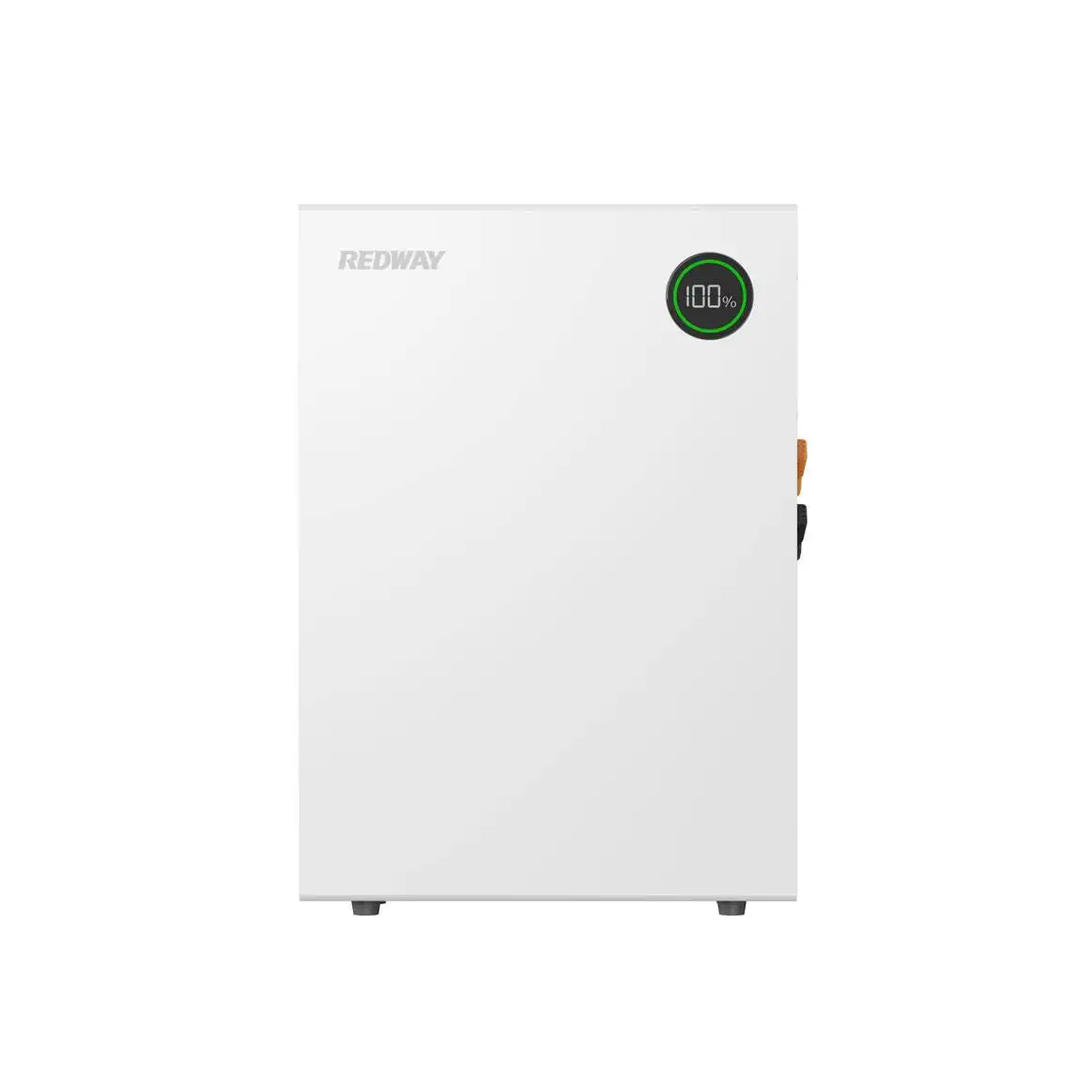

Redway PW51100-F (IP65) is a powerful and compact power storage wall solution designed to assist homes in achieving energy independence and sustainability. This device, with a capacity of 5.1 kWh, is ideal for storing energy from renewable sources such as solar panels or wind turbines. It’s an excellent choice for homes looking to lower their energy expenses and carbon footprint without breaking the bank.
Finally, the PW51100-F power storage wall system is a dependable and cost-effective renewable energy solution that provides excellent value for money. Its small size, powerful battery technology, and simple interface make it an excellent choice for homes looking to minimize their energy expenses and carbon footprint. With Redway Power’s dedication to quality and dependability, you can be confident that you’re investing in a long-lasting and environmentally friendly energy solution for your house.
Redway Battery produces Home-ESS household wall-mounted power energy storage LiFePO4 batteries (Power Storage Wall Series), which use extremely safe EV grade LiFePO4 cells. We’re fully certified and can be customized and OEM. For inquiries, please Contact us.
Applications:
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down.
At night, the battery can provide your home with clean energy that you’ve generated from solar during the day.
If your utility offers Time-of-Use rates, you can use less expensive solar energy you’ve already generated to avoid electrical charges during more expensive rate periods.
With easy installation and a minimalist design, Power Storage Wall complements a variety of home styles. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.
| PW51100-F |
Specifications |
| Lithium Cell |
LiFePO4 (LFP) |
| Nominal Capacity |
100Ah |
| Nominal Voltage |
51.2V |
| Nominal Energy |
5.12kWh |

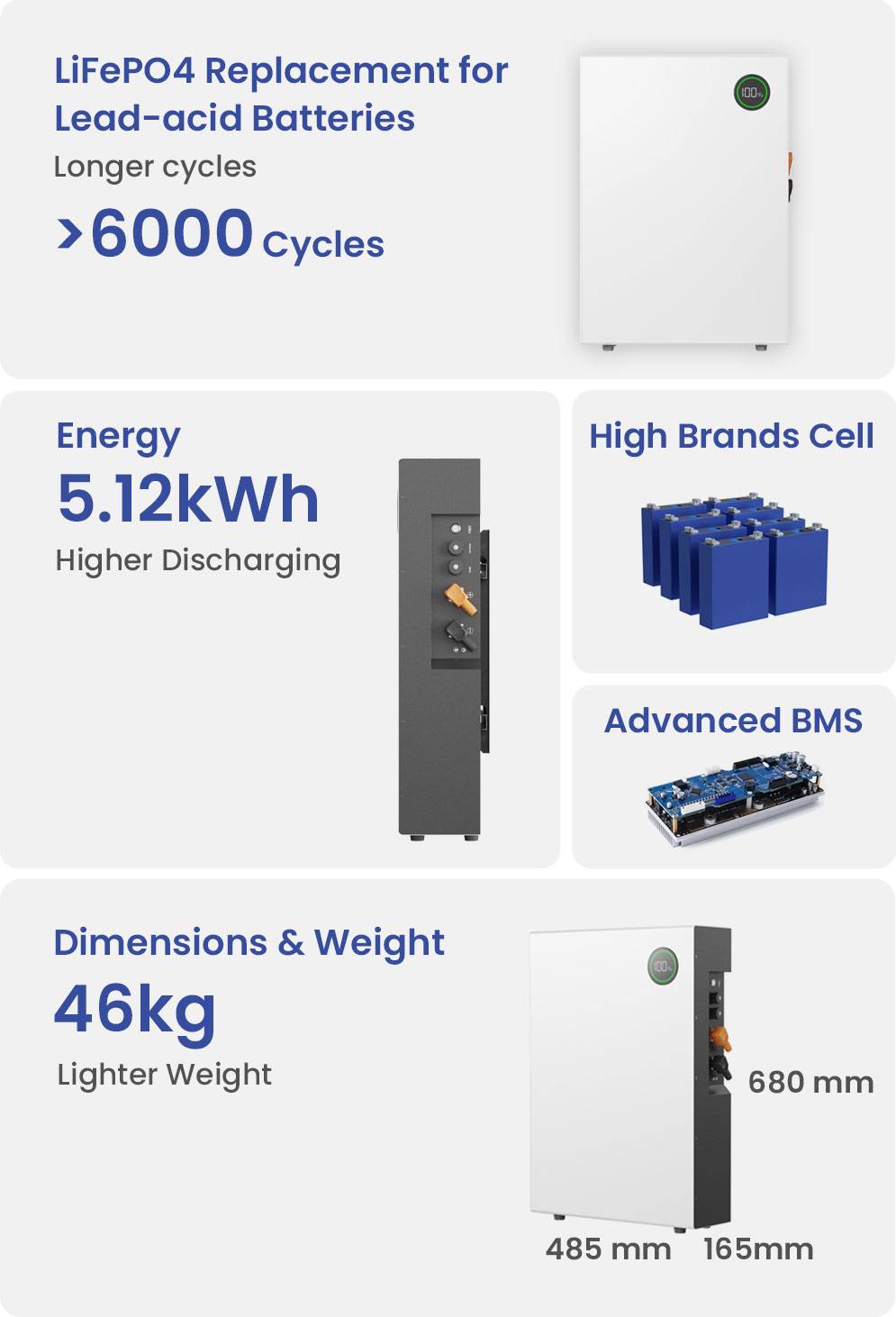

| Dimensions [L*W*H] |
680 x 485 x 165 mm
26.8 x 19 x 6.5 inches |
| Weight |
46kg
101.4 lbs |
| Max Continuous Charge Current |
100A |
| Max Continuous Discharge Current |
100A |
| Max Charge Voltage |
58.4V |
| Discharge Cut-off Voltage |
40V |
| Charge Temperature |
0 ~ 60°C |
| Discharge Temperature |
-20 ~ 60°C |
| Design Life |
20 Years |
| Warranty |
10 Years |
| Cycle Life (25°C@80% DOD) |
>8000 Cycles |
| Cycle Life (25°C@60% DOD) |
>9000 Cycles |
| IP Rating |
IP65 |
| Max Parallel Connections |
16 |
| Communications |
RS485 / CAN-bus |
| LCD Display |
Yes |
| Battery Shell |
Metal |
| BMS |
JBD BMS |
| OEM |
Yes |
| Optional Upgrades |
Bluetooth / App / 4G / WiFi / RS232 / RJ45 / Circuit Breaker / Active Balance / Self-heating / etc. |
| Compatible Inverters |
Victron / SMA / Goodwe / Solis / SAJ / Growatt / Luxpower / SRNE / Voltronic / Deye / etc. |
| Certifications |
UL 1642 / IEC 62619 / CE / UN38.3 / MSDS |
Know More
Why Choose the IP65 48V 100Ah Wall-mounted LiFePO4 Battery (PW51100-F)?
The IP65 48V 100Ah wall-mounted LiFePO4 battery (PW51100-F) delivers robust safety, high energy density, and long cycle life for home and commercial energy storage. Redway Battery’s advanced design, smart BMS, and flexible installation make this battery a top choice for reliable, scalable, and efficient backup power.
What is the IP65 48V 100Ah Wall-mounted Lithium Battery (PW51100-F)?
The PW51100-F is a 48V 100Ah (5.12kWh) wall-mounted lithium iron phosphate (LiFePO4) battery designed for residential and commercial energy storage. Its slim, modular form factor and IP65 waterproof rating make it ideal for both indoor and outdoor installations, providing reliable backup and renewable energy storage.
Chart: Core Specifications of PW51100-F
| Attribute |
Specification |
| Nominal Voltage |
51.2V |
| Capacity |
100Ah |
| Energy |
5.12kWh |
| Dimensions (L x W x H) |
680 x 485 x 165 mm |
| Weight |
~46kg |
| Max Charge/Discharge |
100A |
| Cycle Life |
>8000 cycles (80% DOD) |
| IP Rating |
IP65 |
| Max Parallel Connections |
16–32 |
| Operating Temp |
-20°C to 60°C |
| Warranty |
10 years |
| Design Life |
20 years |
What are the key technical specifications and features of the PW51100-F?
The PW51100-F features high-grade LiFePO4 cells from top brands, a smart BMS, and a robust metal enclosure. It supports up to 32 parallel units, offers advanced communication (RS485, CAN-bus), and is compatible with leading inverters. Optional upgrades include Bluetooth, WiFi, 4G, LCD, and self-heating for cold climates.
Chart: Key Features of PW51100-F
| Feature |
Details |
| Cell Type |
LiFePO4 (CATL/EVE/BYD/Samsung SDI, etc.) |
| Max Charge Voltage |
58.4V |
| Discharge Cut-off |
40V |
| Communication |
RS485, CAN-bus |
| Optional Upgrades |
Bluetooth, WiFi, 4G, LCD, Self-heating |
| Accessories |
Power/Comm Cables, Grounding Wire |
| Certifications |
IEC62619, UL1642, CE, UN38.3, MSDS |
How does the IP65 rating improve safety and installation flexibility?
The IP65 rating ensures the PW51100-F is dust-tight and protected against water jets, making it suitable for outdoor and harsh environments. This flexibility allows installation in garages, basements, utility rooms, and even outdoors, significantly reducing risks from dust, moisture, and weather exposure.
What are the advantages of LiFePO4 chemistry for energy storage?
LiFePO4 chemistry provides exceptional safety, thermal stability, and longevity compared to other lithium types. It resists overheating, supports deep cycling, and maintains capacity over thousands of cycles, making it ideal for stationary storage where reliability and lifespan are crucial.
How long is the cycle life and what is the expected lifespan?
The PW51100-F delivers over 8000 cycles at 80% depth of discharge, translating to 15–20 years of service life under normal use. This long lifespan reduces replacement costs and ensures dependable backup for homes and businesses.
What safety and protection features are included in the PW51100-F?
The smart BMS provides multi-layer protection against overcharge, overdischarge, overcurrent, overheating, and short circuits. The robust enclosure, IP65 rating, and optional upgrades like self-heating and LCD monitoring further enhance safety, making the battery suitable for demanding environments.
Can multiple PW51100-F batteries be connected in parallel for greater capacity?
Yes, up to 16–32 PW51100-F batteries can be connected in parallel, expanding total storage to over 160kWh. This modularity allows users to scale their energy storage systems for residential, commercial, or industrial needs, adapting to changing energy demands.
What are the main applications for a 48V 100Ah wall-mounted battery?
The PW51100-F is ideal for home energy storage, solar backup, off-grid systems, small businesses, hotels, schools, and medical facilities. Its slim wall-mount design saves space, and its robust protection makes it suitable for both indoor and outdoor use.
How does the smart BMS enhance performance and reliability?
The smart BMS continuously monitors cell voltage, current, and temperature, balancing cells and providing real-time protection. Features like remote monitoring and communication with inverters ensure optimal performance, prevent failures, and extend battery life.
Why choose Redway Battery as your wall-mounted LiFePO4 supplier?
Redway Battery is a global leader in lithium battery design and manufacturing, offering advanced technology, OEM/ODM customization, and comprehensive support. Their focus on safety, innovation, and quality assurance makes them a trusted partner for critical energy storage projects.
What are the future trends and innovations in wall-mounted lithium battery technology?
Future trends include higher energy density, AI-driven BMS diagnostics, advanced remote management, and seamless integration with smart homes and renewable energy. Redway Battery is at the forefront, developing next-generation solutions for evolving energy needs.
Redway Battery Expert Views
“At Redway Battery, we believe the IP65 wall-mounted LiFePO4 battery sets a new standard for safe, reliable, and scalable home energy storage. Our commitment to innovation and customer-centric design ensures that every PW51100-F delivers unmatched performance and peace of mind.”
– Redway Battery Technical Team
Conclusion
The IP65 48V 100Ah wall-mounted LiFePO4 battery (PW51100-F) offers superior safety, long life, and flexible installation for modern energy storage needs. With Redway Battery’s expertise, smart BMS, and global certifications, this battery is the smart choice for anyone seeking reliable, efficient, and scalable power solutions.
FAQs
What makes the PW51100-F battery stand out?
Its IP65 rating, smart BMS, and modular design provide safe, long-lasting, and scalable energy storage for homes and businesses.
How long will a 48V 100Ah LiFePO4 battery last?
With proper use, expect over 8000 cycles and a lifespan of 15–20 years.
Can these batteries be used for outdoor installations?
Yes, the IP65 rating allows safe installation in outdoor and harsh environments.
What certifications does the PW51100-F hold?
IEC62619, UL1642, CE, UN38.3, and MSDS, meeting international safety and quality standards.
Why choose Redway Battery for wall-mounted solutions?
Redway Battery offers advanced engineering, OEM/ODM flexibility, and global support, ensuring top-tier quality and service.
