What is the resting voltage of LiFePO4? Why LiFePO4 Batteries Are a Smart Choice

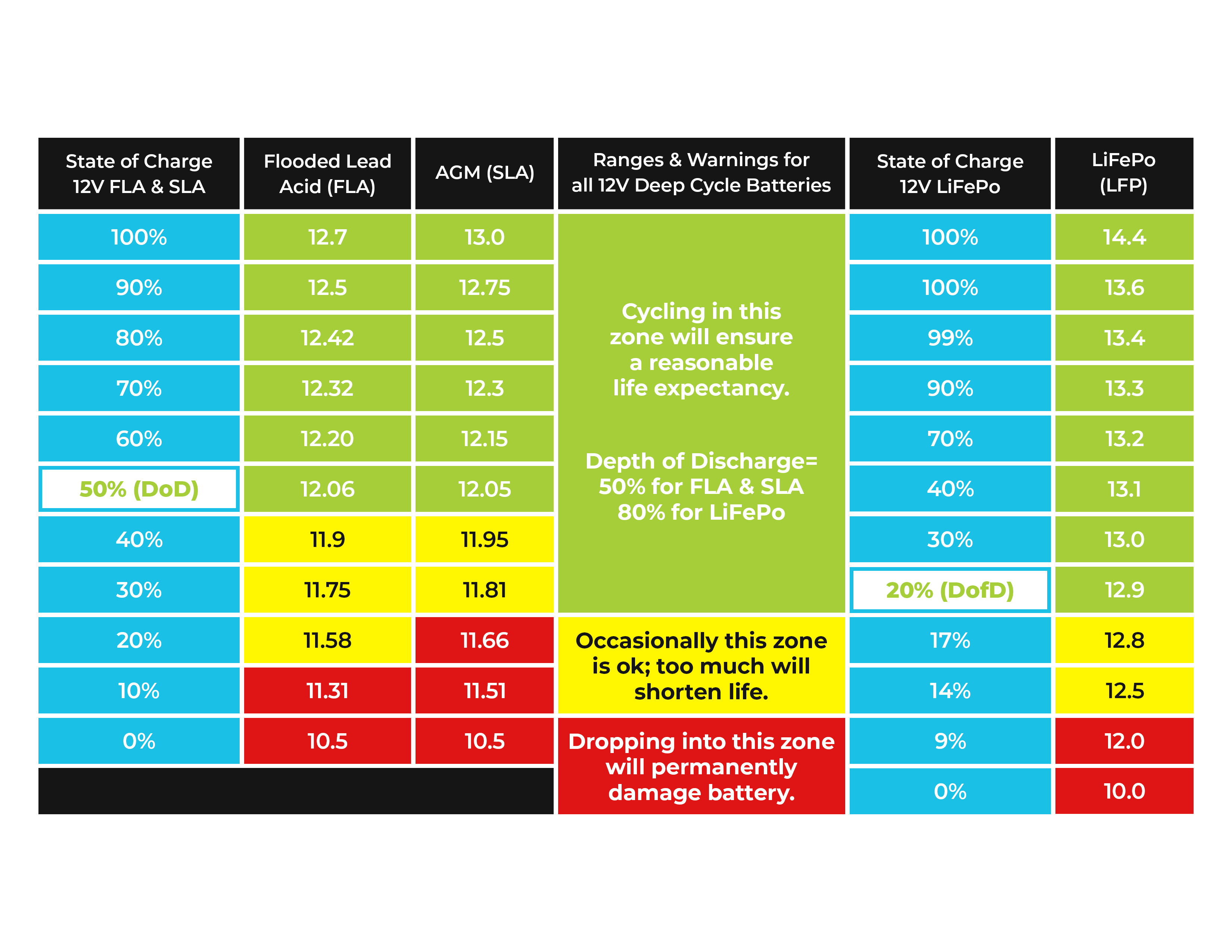

The resting voltage of a LiFePO4 battery, or Lithium Iron Phosphate battery, typically stays between 3.2 volts and 3.3 volts per cell. This voltage remains constant when the battery is idle, indicating its level of charge. The resting voltage of LiFePO4 (Lithium Iron Phosphate) battery depends on its state of charge (SOC). Here is a general guide for the resting voltage of LiFePO4 battery at different SOC levels:

• 100% charged: 3.45-3.50V per cell or 13.8-14.0V for a 12V battery
• 75% charged: 3.35-3.40V per cell or 13.4-13.6V for a 12V battery
• 50% charged: 3.25-3.30V per cell or 13.0-13.2V for a 12V battery
• 25% charged: 3.10-3.20V per cell or 12.4-12.8V for a 12V battery
• 0% charged: 2.50-2.70V per cell or 10.0-10.8V for a 12V battery

What is the resting voltage of LiFePO4?

1. Resting Voltage: LiFePO4 batteries have a resting voltage of around 3.2V. This is the voltage level when the battery is not being charged or discharged, indicating its current state of charge.
2. Fully Charged Voltage: When LiFePO4 batteries are fully charged, their voltage can reach around 3.65V. This indicates that the battery has reached its maximum capacity and is ready for use.
3. Discharged Voltage: On the other hand, when LiFePO4 batteries are completely discharged, their voltage drops to around 2.5V. This indicates that the battery has depleted its stored energy and needs to be recharged.

Why LiFePO4 Batteries Are a Smart Choice

1. Longer Lifespan: LiFePO4 batteries have a longer lifespan compared to other battery types. This means they can be used for a longer duration before requiring replacement, making them a cost-effective choice in the long run.
2. Increased Thermal Stability: LiFePO4 batteries exhibit increased thermal stability, meaning they are less prone to overheating. This makes them a reliable power source, especially in applications where temperature fluctuations are common.
3. Enhanced Safety: LiFePO4 batteries prioritize safety by avoiding the use of materials such as nickel or cobalt, which are commonly found in other battery chemistries. This reduces the risk of safety incidents and makes LiFePO4 batteries a safer choice for various applications.

It’s important to note that the exact resting voltage range can vary based on the specific LiFePO4 battery chemistry, manufacturer, and other factors. It’s always best to consult the manufacturer’s specifications for accurate information.

Why LiFePO4 Batteries Are a Smart Choice for Your Energy Storage Needs

1. Long Lifespan for Extended Usage:

• LiFePO4 batteries have a significantly longer lifespan compared to traditional lead-acid batteries.
• They can endure a higher number of charge-discharge cycles, providing extended usage and reliability.
• This longevity ensures that LiFePO4 batteries can meet long-term energy storage needs without frequent replacements.

2. Economic Benefits for Cost Savings:

• The long lifespan of LiFePO4 batteries translates into cost savings over time.
• With fewer cycles of battery replacement, individuals and businesses can reduce maintenance and replacement costs.
• The initial investment in LiFePO4 batteries can be offset by the extended lifespan and reduced expenditure on replacements.

3. Reliable and Efficient Energy Storage Solution:

• LiFePO4 batteries offer a reliable and efficient solution for energy storage needs.
• Their ability to last more cycles ensures a consistent and stable power supply over an extended period.
• With their long lifespan and durability, LiFePO4 batteries provide peace of mind and a dependable energy storage option.

LiFePO4 LFP Discharge Curve

Lead Acid Discharge curve

Redway Power – A Leading Custom LiFePO4 battery manufacturer

At Redway Power, we offer a range of LiFePO4 batteries that are designed to meet the needs of our customers. Whether you need a small battery for a portable device, or a large battery for a solar power system, we have the expertise and products to meet your needs.

In summary, LiFePO4 batteries offer a number of advantages over other types of lithium-ion batteries, including high energy density, long cycle life, and safety. If you are in need of an energy storage solution, we encourage you to consider LiFePO4 batteries from Redway Power. With our expertise and high-quality products, we are confident that we can meet your needs and exceed your expectations.

Factors Affecting Resting Voltage of LiFePO4 Batteries

1. State of Charge and Voltage Relationship:

• The resting voltage of LiFePO4 batteries is closely tied to their state of charge (SoC).
• As the battery charges, the voltage increases, and as it discharges, the voltage decreases.
• Monitoring the voltage can provide insights into the battery’s current state of charge.

2. Temperature and Voltage Impact:

• Temperature plays a significant role in LiFePO4 battery voltage.
• Extreme high or low temperatures can affect the battery’s capacity and internal resistance, influencing the resting voltage.
• It is important to consider temperature conditions when assessing the voltage of LiFePO4 batteries.

3. Influence of Battery Materials, Application, and Maintenance:

• The materials used in LiFePO4 batteries, such as cathode and anode materials, can impact their resting voltage.
• The specific application in which the batteries are used may also affect their resting voltage due to varying load conditions.
• Proper maintenance practices, such as regular charging and monitoring, can help maintain the desired resting voltage.

Ideal Resting Voltage for LiFePO4 Batteries

1. Ideal Resting Voltage Range:

• The ideal resting voltage for LiFePO4 batteries typically falls between 13.2V and 13.6V for most applications.
• This specific voltage range is considered optimal for efficient battery operation and maximizing the battery’s lifespan.
• It helps maintain the battery’s capacity and ensures consistent performance.

2. Variation and Application Considerations:

• The exact resting voltage within the ideal range may vary slightly depending on the battery manufacturer and the specific application.
• Different LiFePO4 battery models and brands may have specific voltage recommendations for their optimal performance.
• Considering the application requirements and manufacturer guidelines is essential when determining the ideal resting voltage.

3. Importance of Monitoring Resting Voltage:

• Monitoring the resting voltage of LiFePO4 batteries is crucial for ensuring optimal performance and longevity.
• Regular voltage checks help identify any deviations from the ideal range, allowing for timely maintenance or adjustments.
• By maintaining the resting voltage within the recommended range, users can maximize the efficiency and lifespan of their LiFePO4 batteries.

Importance of Monitoring Resting Voltage

1. Assessing Battery Health and State of Charge:

• Monitoring resting voltage provides valuable insights into the health and state of charge of batteries.
• Resting voltage levels indicate the battery’s current capacity and overall condition.
• By monitoring resting voltage, users can assess whether the battery is fully charged, partially charged, or discharged.

2. Detecting Potential Issues:

• Resting voltage monitoring helps detect potential issues with batteries, including LiFePO4 batteries.
• Low resting voltage levels may indicate a discharged or faulty battery that requires attention.
• Identifying such issues early on allows for timely maintenance or replacement, ensuring reliable battery performance.

3. Ensuring Optimal Performance and Reliability:

• Regular monitoring of resting voltage ensures optimal performance of batteries.
• It helps users make informed decisions regarding charging, usage patterns, and maintenance practices.
• By maintaining the recommended resting voltage levels, users can maximize the reliability and longevity of their batteries.

How to Measure Resting Voltage of LiFePO4 Batteries

1. Check via Multimeter:

• To measure the resting voltage, start by disconnecting all loads and chargers connected to the LiFePO4 battery.
• This ensures that no external influences affect the voltage reading and provides an accurate representation of the battery’s resting state.
• Allow the battery to rest for 15-30 minutes to stabilize before proceeding with the measurement.
• Use a multimeter, set to the appropriate voltage range, to measure the open circuit voltage of the battery.
• Place the multimeter probes on the positive and negative terminals of the battery to obtain the resting voltage reading.

2. Importance of Disconnecting Loads and Chargers:

• Disconnecting all loads and chargers is crucial to isolate the battery and obtain an accurate resting voltage measurement.
• Loads and chargers can introduce additional electrical activity that may affect the voltage reading.
• By disconnecting these external connections, the measured voltage reflects the true resting state of the LiFePO4 battery.

3. Significance of Allowing the Battery to Rest:

• Allowing the battery to rest for 15-30 minutes before measuring the voltage is essential for stability.
• During this resting period, the battery’s internal chemical processes settle, providing a reliable voltage reading.
• This waiting period ensures that any transient effects from recent charging or discharging activities are minimized.
